Plate labeled "EMERGENCY DOOR RELEASE ALARM WILL SOUND
5/8" x 7/8" red, rectangular push button
Switch mounted on either narrow or single gang plate
Switch illuminated with hi-brightness LED
Switch terminated with colored leads
85 dB Piezo buzzer
SPDT latching push button
Contacts rated 3A at 35 VDC or 120 VAC
Switch operates on 12 or 24 VAC or VDC
Options
430 single gang stainless steel wall plate
302 narrow 1 ¾” stainless steel wall plate
Other wall plate finishes available
Push button labeled "EXIT"

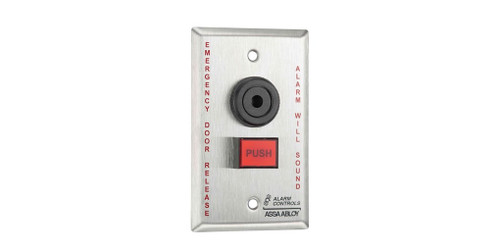

Model TS-26 is narrow and TS-25 is single gang wall plate
Specifications • SPDT latching push button • Contacts rated 3A at 35 VDC or 120 VAC • Switch operates on 12 or 24 VAC or VDC • 12 or 24 VDC operation Features • 5/8" x 7/8" red rectangular push button; Switch mounted on either narrow or single gang wall plate. • Plate labeled "EMERGENCY DOOR RELEASE ALARM WILL SOUND" • Switch illuminated with brightness LED • Switch terminated with colored leads • 85 dB Piezo buzzer Options • 430 stainless steel wall plate • 1-3/4" narrow 302 stainless steel wall plate • Other wall plate finishes are available • Push button labeled "PUSH" • Push button labeled "EXIT" • Model TS-26 is narrow and TS-25 is single gang wall plate
TS-26 SPDT 3A Illuminated Alternate Action Push Button, with Buzzer, “EMERGENCY DOOR RELEASE ALARM WILL SOUND", Mounted on 1-3/4" Stainless Steel Plate
