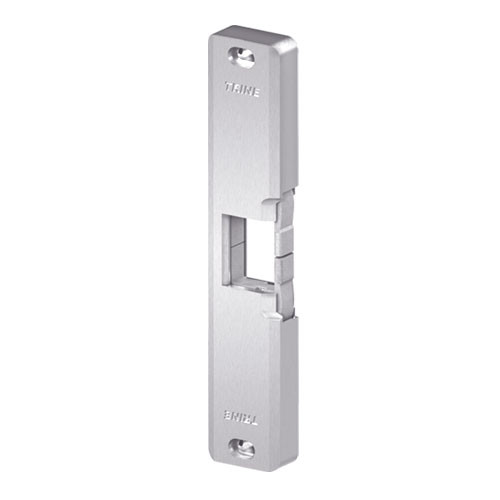

The Trine 4801-32 series are used with surface mounted rim exit devices with up to 1" throw and for use in new or replacement installations in wood or metal door frames and tight installs. The 4801 series of electric strikes for surface mounted rim panic devices come equipped with features that make them more flexible and adjustable for a better install every time. The 4801 series product has been designed to install easily, perform reliably, and provide years of trouble free security.
Features:
Polished Stainless Steel finish
Cavity opening: Height-1-17/32" width-1-5/32"
Input voltage: 12/24V AC/DC
3000+ lbs holding force
Stainless steel construction
Faceplate: 1-3/4"W x 9"H x 3/4"D
The 4801 Trine series are certified to BHMA Grade 1
Fail-safe or fail-secure
Must install 2 middle pins
6-Pin Anchor system provided to handle the toughest installations
Polished Stainless Steel finish
Cavity opening: Height-1-17/32" width-1-5/32"
Input voltage: 12/24V AC/DC
3000+ lbs holding force
Stainless steel construction
Faceplate: 1-3/4"W x 9"H x 3/4"D
The 4801 Trine series are certified to BHMA Grade 1
Fail-safe or fail-secure
Must install 2 middle pins
6-Pin Anchor system provided to handle the toughest installations
