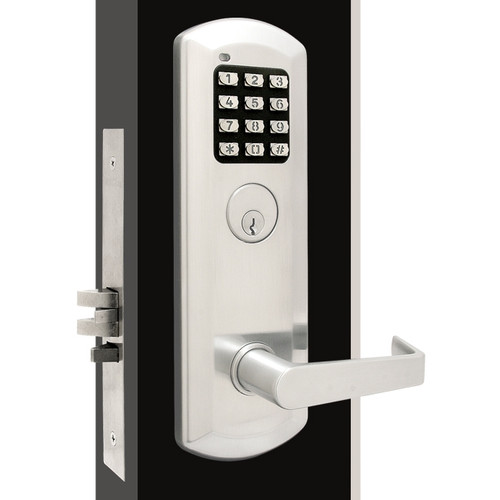

TownSteel XME2020 Mortise, Clutched

ELECTRONIC SPECIFICATIONS

Application
For classroom lockdown, full indoor and outdoor
Master code per lock
1
Manager code capacity per lock
10
User code capacity per lock
90
Service code capacity per lock
5
Communication
Multi-colored LED and Sound
Power supply
4AA battery
Battery life
Up to 2 years
Operating temperature
-31° to 151° F (-35° to 66°C)
Certifications
UL 10C, ANSI/BHMA A156.13

MECHANICAL SPECIFICATIONS

Door Thickness
1-3/4”standard, other upon request
Backset
2-3/4”
Trim
Outside lever is rigid in locked position
Strike
ASA Strike standard, 1-1/4” X 4-7/8”
Latch Bolt
Stainless Steel, split, anti-friction, ¾” projection
Guard bolt
Stainless Steel
Faceplate
Stainless Steel, 1-1/8” x 8”
Strike
ASA Strike, 1-1/4” X 4-7/8”
Escutcheon
Wrought steel or zinc alloy, plated to match finish symbols
Lever
Forged brass or cast zinc, plated to match finish symbols
Lever Style
Sentinel (S), Quest (Q) and Gala(G), designer lever styles upon request
Cylinder
? 6 pin Schlage^® “C” Keyway, standard
? Small Format IC with or without core available, 6 or 7 pin core, Best “A” keyway
? Schlage^® Large Format IC less core available
? Corbin^® Large Format IC less core available, for 6 pin core
Keying
KD standard, KA, MK, GMK, GGMK and construction available
Finish
US26D and US10B stocked, other upon request
Warranty
1-year limited for electronic, 5-year limited for the finish, 10-year limited for mechanical

CODE COMPLIANCE

ANSI/BHMA A156.13
A156.13-2012 Grade 1 certified
ANSI/BHMA A156.25
Meets or exceeds all applicable requirements
UL/ULC
UL 10C 3-hour rated
BAA
Meets guidelines of the Buy American Act
ADA
Meets the requirements of the Americans with Disabilities Act
RoHS
Meets requirements of EU RoHS Directive 2002/95/EC

Sentinel, Gala, Quest. Designer levers are available upon request.

US26D(626) and US10B(613) stocked finishes. Other available upon request.
