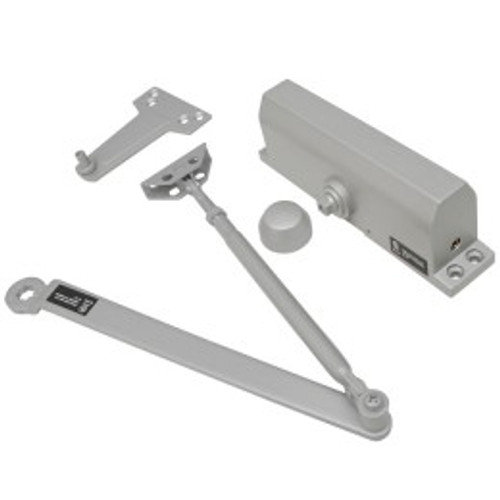

TownSteel TDC 54, Size 4, Grade 3

SPECIFICATIONS

Application
Designed for low traffic application, interior or exterior
Body
Aluminum cast body, non-handed
Rack and Pinion
Precision rack and pinion construction
Arm
Regular Arm
Spring Power
Size 4
Cover
UL listed molded plastic full cover standard, 2-1/2" Projection
Fluid
All-weather fluid, allowing door closer to perform in temperatures ranging from -31°F to 140°F
Needle Bearing
The standard for higher efficiency
Piston
1-13/32" (35.8mm) in diameter
Pinion
7/16" (11.2mm) in diameter
Projection
3” ?76mm) with standard cover
Finish
Aluminum (AL) and Duro (DU) stock finishes, other upon request
Warranty
25 years of limited



CODE COMPLIANCE

ANSI/BHMA
Meets or exceeds A156.4 Grade 3 requirements
UL
UL &ULC Listed
