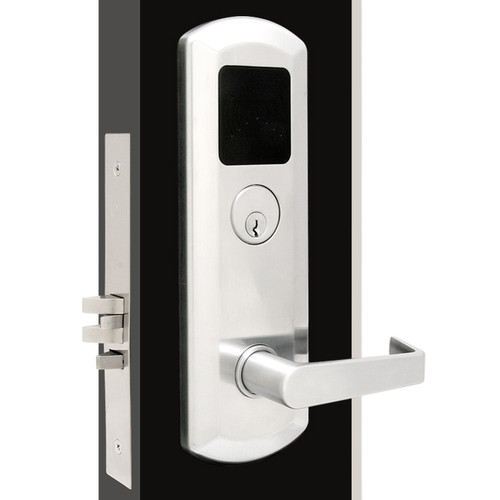

TownSteel FME2010 Mortise, Rigid

The FME2010 is a standalone electronic function lock that provides RFID (Radio-Frequency Identification) technology integrated with an ANSI Grade 1 heavy duty mortise lockset for greater security. RFID technology simplifies the management of the system and provides ease of use. Maximum user and office keycard capacity is 250 per lock. The FME2010 is quick and easy to program.

ELECTRONIC SPECIFICATIONS

Application
For classroom lockdown, full indoor and outdoor
Capacity of User/Office keycards per Lock
250
Credential verification time
Less than 0.5 second
Keycard maximum read/write distance
¾”
Communication
Multi-colored LED indicator and sound
Power supply
4AA battery
Battery life
Up to 2 years
Operating temperature
-31° to 151° F (-35° to 66°C)



MECHANICAL SPECIFICATIONS

Door Thickness
1-3/4”standard, others upon request
Backset
2-3/4”
Trim
Outside lever is rigid when locked
Latch Bolt
Stainless Steel, split, anti-friction, ¾” projection
Guard bolt
Stainless Steel
Faceplate
Stainless Steel, 1-1/8” x 8”
Strike
ASA Strike standard, 1-1/4” X 4-7/8”
Escutcheon
Wrought steel or zinc alloy, plated to match finish symbols
Lever
Forged brass or cast zinc, plated to match finish symbols
Lever Style
Sentinel (S), Quest (Q) and Gala(G), designer lever styles upon request
Cylinder
? 6 pin Schlage^® “C” Keyway, standard
? Small Format IC with or without core available, 6 or 7 pin core, Best “A” keyway
? Schlage^® Large Format IC less core available
? Corbin^® Large Format IC less core available, for 6 pin core
Keying
KD standard, KA, MK, GMK, GGMK and construction available
Finish
US26D and US10B stocked, other upon request
Warranty
1-year limited for electronic, 5-year limited for the finish, 10-year limited for mechanical



CODE COMPLIANCE

ANSI/BHMA A156.13
A156.13-2012 Grade 1 certified
ANSI/BHMA A156.25
Meets or exceeds all applicable requirements
UL/ULC
UL 10C 3-hour rated
BAA
Meets guidelines of the Buy American Act
ADA
Meets the requirements of the Americans with Disabilities Act
RoHS
Meets requirements of EU RoHS Directive 2002/95/EC
FCC
FCC part 15 certified
