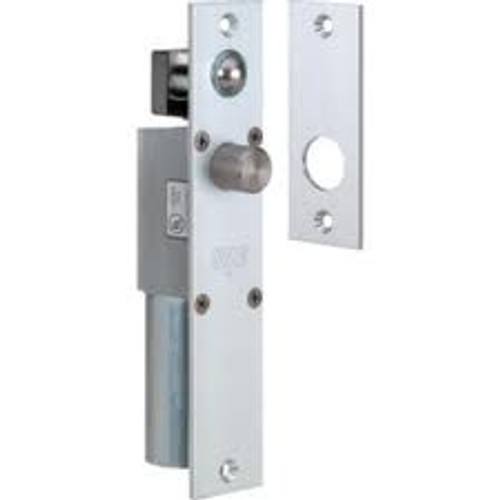

SDC 1091AIV Spacesaver Electric Bolt Lock Narrow Mortise
$327.43
(No reviews yet)
Write a Review
- Brand
- SDC
- SKU:
- 1091AIV
- Condition:
- New
Manufacturer | Security Door Controls |
|---|---|
Model | 1091AIV |
Dimensions | Face Plate: 8"L x 1-1/2"W x 1/8"D (203.2 x 38.1 x 3.175mm) Strike: 4"L x 1-1/2"W x 1/4"D (101.6 x 38.1 x 3.175mm) Bolt Diameter: 5/8" (15.875mm) Bolt Throw: 3/4" (19.05mm) |
Operating Voltage | 12VDC or 24VDC |
Mode of Operation | Fail Safe |
Power Requirements | 0.45 Amp @ 24VDC Continuous Duty 0.9 Amp @ 12VDC Continuous Duty |
Compliances | Classified in accordance with Uniform Building Code standard 7-2, “Fire Test for Door Assemblies” |
U.L. Listed | Auxiliary Locks Complies with “positive pressure” requirements of standard UL10C Listed US & Canada |
Warranty | 5 Year Limited Warranty |
Weight | 6.0000 |
Security Door Controls SDC 1091AIV Spacesaver Electric Bolt Lock Narrow Mortise
