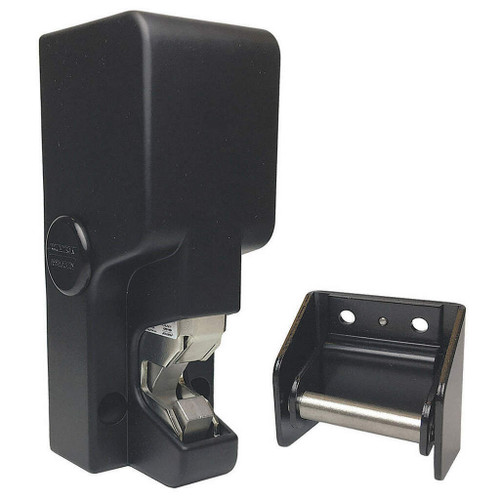

Securitron GL1-FSM Gate Lock Fail Safe Monitored

FAIL SAFE MONITORED Electromechanical Gate Solution Offers One Ton of Holding Power

The heavy duty GL1 Electromechanical Gate Lock provides weather-resistant access control for a wide range of gate applications. The GL1 provides 2000lbs of holding force for electrical and manually operated indoor or outdoor gates where preload is a concern.

Specifications

• Holding Force: 2000lbs [907kg]
• Dimensions: 2-3/4"L x 7-1/4"W x 3-1/4"D
• Electrical:
  -12 Volts Initial (Peak): (~1.0 sec.) @ 870mA - Reduced: 290mA Power
      Consumption: 3.5 Watts
  -24 Volts Initial (Peak): (~1.0 sec.) @ 720mA - Reduced: 170mA Power
      Consumption: 4.1 Watts
• Operating temperature: -58 to +167F [-50 to +75C]
  -Indoor or outdoor use
• Shipping Weight: 6lbs [2.72kg]
• Finishes: Black Finish

Product Features

• 2,000 lbs holding force
• Operates under preload up to 100lbs
• Automatic dual voltage - no field adjustment required
• Accepts a standard mortise cylinder with Adams Rite MS cam for manual key override (not included)
• Self-aligning receiver helps compensate for gate misalignment and sag
• Tamper resistant cast housing
• Monitored Latch
• Surface mount
• MagnaCare^® lifetime replacement, no fault warranty
