S6000 Spectra™ Electric Dogging

S6000 Spectra™ Exit Devices SPECTRA CLASS - SPECIFICATION GRADE EXIT DEVICES FOR SUPERIOR ARCHITECTURAL STYLE & PERFORMANCE The new mechanical SDC S6000 Spectra™ Series panic and fire rated exit devices are available in rim mount, mortise and surface vertical rod configurations. Spectra Class mechanical exit devices are UL listed and ANSI A156.3 Grade 1 compliant and comply with all national and state building and fire life safety codes. The SDC Spectra series exit devices have a modern look and quiet push pad operation. Various Elec

The mechanical SDC S6000 Spectra™ Series panic and fire rated exit devices have a modern look and quiet push pad operation and are available in rim mount, mortise and surface vertical rod configurations. Spectra Class mechanical exit devices are UL listed and ANSI A156.3 Grade 1 compliant and comply with all national and state building and fire life safety codes.

MODELS:

S6100 Rim Mount

S6200 SVR Surface Vertical Rod

S6300 Mortise

APPLICATIONS:

RHR or LHR Hollow Metal, Wood and Mineral Core Doors•

1-3/4” Door Thickness Standard Specify Thickness Other Than 1-3/4”

SPECIFICATIONS:

Latch Bolt Stainless Steel,3/4” Throw

Dead Latch Deadlocking, Stainless Steel, 5/8” Throw Strike

Stainless Steel

Top Latch Stainless Steel, 37/64”

Top Strike Included

Bottom Latch Stainless Steel, 37/64”

Bottom Strike Included

Latch Case Covers Steel, Stainless Steel or Brass

Vertical Rods Aluminum Tube

Standard Height for 7’0” Doors

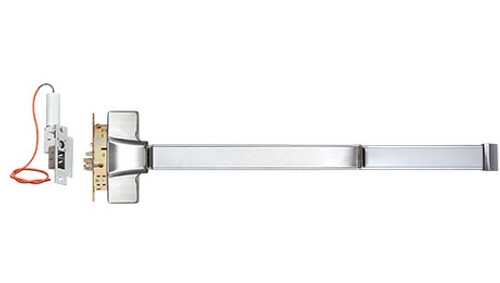

*The image may not represent the actual product or finish
