<div class="std">The SDC IP100 Series 12V PoE-Capable Electric Latch Retraction Kit enables electric access control and dogging of mechanical exit devices.</div>

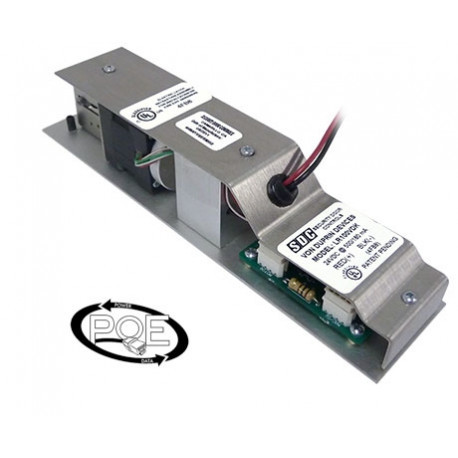

DETAILS: SDC IP100 FOR YALE 7000 SERIES EXIT DEVICES
The SDC IP100 Series 12V PoE-Capable Electric Latch Retraction Kit enables electric access control and dogging of mechanical exit devices. When energized the motor retracts the exit device latch and pulls the pushpad into the dogged (depressed) position enabling momentary or sustained push and pull operation of the door.
The latch retraction mechanism may be activated by an access control, remote control device or building automation system. The exit device always provides uninhibited egress.
QUIET DUO™ IP100 Series available for these brands:
Von Duprin
SDC
Corbin Russwin
Hager
Sargent
Yale
Adams Rite
Falcon
Features
700 mA Inrush, 200 mA Continuous @ 12VDC
Power Over Ethernet (PoE) Capable
For access control and sustained dogging applications
Simultaneous latch retraction and dogging
Pushpad is depressed for most exit devices*
Automatic re-trigger if the device does not pull on the first try
Eliminates the need for costly replacement of existing exit device
Significantly less labor and costs compared to competitive retrofit kits
Low current enables longer wire runs with smaller gauge wire
No door sequencers required for pairs of manual doors
The SDC IP100 Series 12V PoE-Capable Electric Latch Retraction Kit enables electric access control and dogging of mechanical exit devices.
The 7100 is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood or composite materials. Designed for application in high-use areas, the 7100 comes in a variety...
