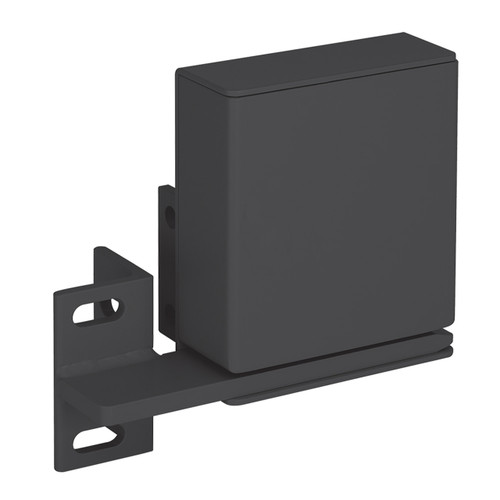

Gate Lock for Outdoor Installation, 12/24VDC, Failsecure, Gate Position Sensor, SPDT for Gate Lock,
The SDC GL160 and 260 series electromechanical GateLoks are designed to provide access control and remote locking and unlocking capability for manual or automatic chain link, tubular steel and wrought iron sliding or swinging gates. Available in either failsafe (locked when energized) or fail-secure (unlocked when energized) the electromechanical GateLok provides a higher degree of security than electromagnetic locks. Locking and unlocking may be accomplished with access control such as a card reader, digital keypad or remote control. All GateLoks are designed for a 3” (76mm) fence post and 2” (51mm) gate post and are adaptable to smaller sizes.
Additional Information
Manufacturer
Security Door Controls
Model
GL260AH-D
Dimensions
Size 5"W x 6-1/2"H x 2"D (127 x 16.5 x 50.8mm) Bolt 5/8" dia. x 5/8" throw (15.9mm x 15.9mm)
Handing
Non-Handed
Operating Voltage
12VDC or 24VDC
Mode of Operation
Fail Secure
Monitoring Options
Gate position sensor SPDT, 10Amp @ 30VDC
Warranty
5 Year Limited Warranty
Weight
7.0000
