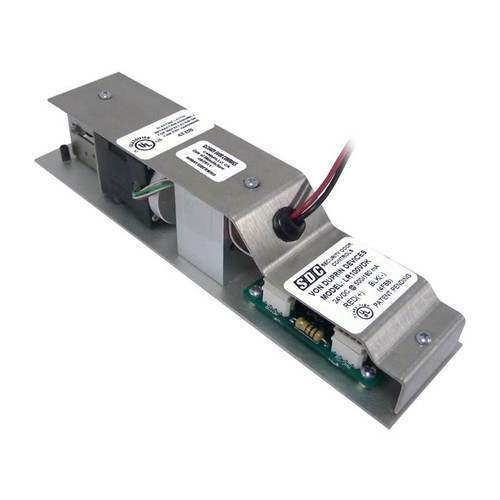

LR100SDCK — SDC Exit Device Part

Quiet Duo Dual Latch Retraction/ Dogging Kit, for 3 Ft. and 4 Ft. SDC 6000 Series Exit Devices

The SDC LR100SDCK Series Electric Latch Retraction Kit enables electric access control and dogging of mechanical exit devices. When energized the motor retracts the exit device latch and pulls the pushpad into the dogged (depressed) position enabling momentary or sustained push and pull operation of the door.

The latch retraction mechanism may be activated by an access control, remote control device or building automation system. The exit device always provides uninhibited egress. The unit is equipped with a SDC 6000 exit device field retrofit kit designed for an opening of 36" to 48".

Features:

• Motorized Electric Latch Retraction & Dogging for Fire Rated & Non Fire Rated Device
• Retrofits select exit device brands without removing device from the Door
• Only Latch head cover and end cover plate removable required for most other brands
• Low 700mA Inrush, 180 mA Continous
