SDC ELR Retrofit Kits

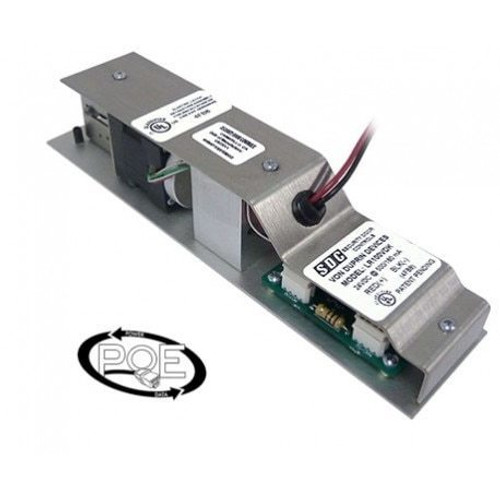

LR100CAK-9800 — SDC Exit Device Part

Motor Latch Retraction Kit, Fits Cal Royal 9800 Devices, 400 mA Inrush, 180 mA Continuous at 24DC, Only 1 Amp Power Required for up to 2 Panics

The SDC LR100 Series Electric Latch Retraction Kit enables electric access control and dogging of mechanical exit devices. When energized the motor retracts the exit device latch and pulls the pushpad into the dogged (depressed) position enabling momentary or sustained push and pull operation of the door.

The latch retraction mechanism may be activated by an access control, remote control device or building automation system. The exit device always provides uninhibited egress.

SDC Quiet Duo LR100CAK-9800 24V Latch Retraction / Dogging Kit For Cal-Royal Exit Devices

Fits Cal-Royal GLS9800 / GLSCVR9800 Exit Devices

For 36" openings

Features:

• 700 mA Inrush, 200 mA Continuous @ 24VDC

• For access control and sustained dogging applications

• Simultaneous latch retraction and dogging (pushpad depressed) for most exit devices

• Pushpad is depressed electrically for quieter push / pull operation

• Automatic re-trigger if device does not pull on frst try

• Eliminates need for costly replacement of existing exit device

• Signifcantly less labor and costs compared to competitive retroft kits

• Low current enables longer wire runs with smaller gauge wire

• No door sequencers required for pairs of manual doors
