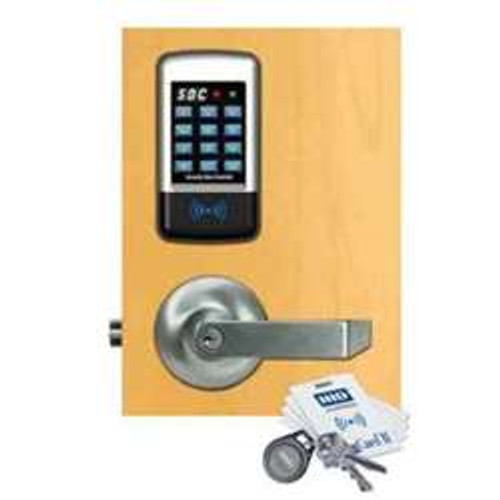

SDC E75PSQE1Q Digital Keypad with Prox Reader and Bluetooth Enabled Software, Cylindrical Lockset, 626 Dull Chrome Keypad Finish, Eclipse Lever Handle, 626 Dull Chrome Lever Lockset Finish

The SDC EntryCheck E75 Series features Bluetooth enabled software and 10,000 event audit trails. E75 models can be retrofitted to existing prep for cylindrical locks. EntryCheck is a simplified solution requiring no wires, fewer components, less labor and costs for access control of single doors up to 3,000 users. These indoor/outdoor, standalone, wireless electronic battery powered solutions provide controlled access for basic and multi-level high security requirements. EntryCheck locksets are keypad programmable, and combine multiple access technology with efficient SDC motorized locksets.

E75PS Digital Keypad with Prox Reader and Software

• Supports up to 1,000 unique doors
• Manage up to 3,000 unique users and credentials
• Manage individual door parameters, access schedules, user groups, holidays, temporary users, and more...
• Features:


  • PS version features bluetooth enabled software
  • Point-and-click Microsoft PC-based software
  • Supports up to 1,000 unique doors
  • Manage up to 3000 unique users and credentials
  • Manage individual door parameters, access schedules, user groups, holidays, temporary users
  • Lock settings and related parameters are easily cloned to other locks, permitting quick multi-lock installations
  • Data Import: All lock parameters and user data can easily be imported from existing databases, locks, or spreadsheets
  • Database backup utility: Password protected SQL dbase may be saved on any PC
  • Wireless Information Transfer: Lock programming and audit trail may be uploaded or downloaded using a Bluetooth enabled PC or laptop
  • Audit Trail Information: Locks will maintain a record of the last 10,000 events to provide increased accountability. Audits may be downloaded to Excel spreadsheets where information is easily analyzed, sorted or printed.
  • User entries logged with time & date
  • Remote input activation is logged
  • Door Forced/Door ajar/Duress alarms are logged
  • User Reports: Users may be exported to Excel spreadsheets where information is easily sorted or printed
  • Keypad or PC Software Programmable
  • 3,000 Users, 32 Temporary Users
  • 4 to 6 Digit PIN Codes
  • 3 Passage Mode Option
  • 32 Access Groups, Schedules
  • 32 Holidays
  • 4 Authority Levels
  • Keypad Tamper Lockout
  • Mechanical Key Override
  • Battery Powered (4AA)
  • Blue Backlit Cast Metal Keys
  • Weather & Vandal Resistant
  • Retrofit Existing Lock Door Prep
  • Motorized SDC Cylindrical Lockset
  • Heavy Duty ANSI Grade 1
  • Vandal Resistant Lever Clutch Mechanizm
  •
  • Technical Specifications:

    • Power: 4 Size AA Batteries (Alkaline) 100,000 cycles or External 12VDC Power @ 30mA
    • Inputs: 1 Request to Exit, 1 Door Position Switch
    • Output: 1 Aux Relay
    • Contacts: SPDT 1A @ 30VDC
    • Temperature: -20F to + 130F (-30C to + 54C)
    • Humidity: 5% to 95% non-condensing
