SDC 474U TOUCHLESS WAVE-TO-EXIT SWITCH

• Uses IR Sensor technology; device is active with the simple wave of a hand

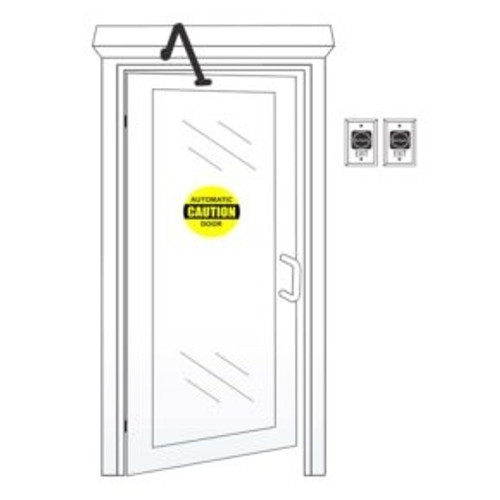

• Designed to control electric locks/strikes, magnetic locks, or automatic door operators

474U — SDC Touchless Actuators

Sanitary, No Touch, Wave-to-Exit Switch, Single Gang, DPDT, "No Touch Exit"

• Ideal for use in sanitary applications such as cleanrooms, bathrooms, food processing, hospitals and labs

• Sensing Range up to 4″ (10cm)

• Mounted on a durable stainless steel plate

• Dual LED, illuminated sensor, Red/Green indicates Inactive/Active status

• Quick connect screwless terminal block for easy installation

Specifications:

• Input: 25mA (standby); 55mA (Active) @ 12/24VDC

• Output: 2-SPDT, 3 Amp Dry Contact

• Activation Time: 1 second or as long as sensor is triggered

• LED Color: Standby RED; Active Green

• Range: 4″ (10cm)

• Weight: 3 oz. (85g)

• Dimensions: 4.5″ x 2.75″ x 1.375″ (115 x 70 x 35mm)
