Schlage Electronics

CO100993R70KPRHO626PRHR

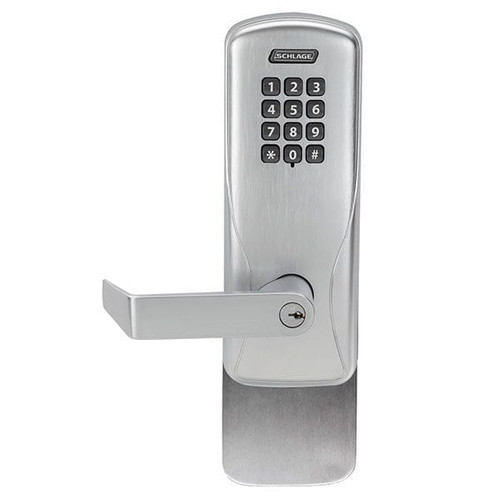

CO-100 Standalone Electronic Lock, Rim/Concealed Exit Device Trim, Classroom Function, Keypad, Rhodes Style Lever, With Schlage Standard Cylinder, Satin Chrome

• Manually programmable auto-locking exit-device operator
• Compatible with select rim and concealed vertical rod push-bars:  Von Duprin 98/99 Rim/Concealed Vertical Rod (metal doors only), Von Duprin 22/22F Rim, Falcon 25, Sargent 80 Series Rim, Corbin-Russwin 5000 Series Rim, Yale 7000 Rim, Dorma 9300 Rim, Precision 2100 Rim exit devices
• Added security and convenience of electronic access control without the cost or complexity of a fully networked system
• Tested to highest industry standards to ensure quality and reliability
• Classroom/Storeroom Function:  Auto-locking lockset is normally secure. Free egress from inside. Valid toggle credentials on the exterior may be used to change to a passage or secured status
• Battery Powered: Up to 2 yrs with 4AA (std. off the shelf; included)
• Assign unique, sequential PIN codes (3-6 digits) to each user (up to 500), minimizing the number of mechanical keys issued which protects the integrity of your key system
• Keypad Programming:  Update users at the lock
• Visual/Audible Communications: Tri-colored LED’s & audible indicators
• Straight-forward & easy to follow installation and operating manual included
• Mechanical key override Schlage Standard Cylinder
• Certifications: UL 294 listed and ANSI/BHMA 156.25 Grade 1 certified**
