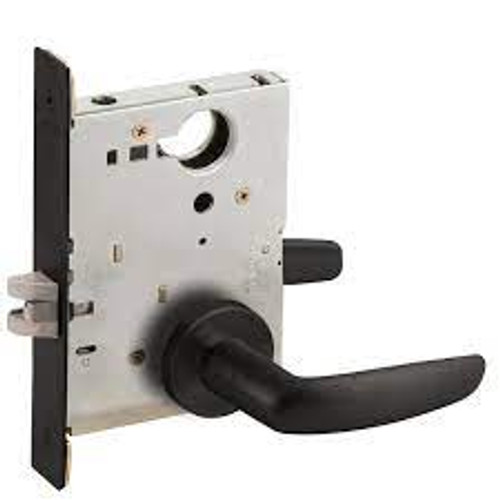

Schlage L9010 07A 622 Grade 1 Passage Latch Mortise Lock, 07 Lever, A Rose, Flat Black Coated Finish, Field Reversible
- Brand
- Schlage Commercial
- SKU:
- L9010 07A 622
Schlage L9010 07A 622 Grade 1 Passage Latch Mortise Lock, 07 Lever, A Rose, Flat Black Coated Finish, Field Reversible
Schlage L9010 07A 622 - Right Hand Lock Mortise Lock
Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
- Passage - Latchbolt Retracted by Either Side at All Times
- ANSI/BHMI Certified A156.13-2012
- Commercial Grade 1
- Lock Body Mortises Inside the Edge of the Door
- UL Listed for 3 Hour Fide Door
Product Assemble-to-Order. Lead Time 2-5 days
Specs
Baa Qualified: Yes
Bolt Protection: 3/4 In.
Country of Origin: Mexico
Design: 07 Lever and A Rose
Door Thickness: 1-3/4 In.
Dust Box: Plastic
Finish: 622/US19
Finish Description: Flat Black Coated
Fire Rated: 3 Hours {A}
Function: Passage
Grade: Grade 1
Latch Backset Dim: 2-3/4 In.
Lever Knob Design: 07 - Lever
Limited Warranty: 3 Years
Lock Face Size: 8 In. x 1-1/4 In.
Rose Escutcheon Design: A - Rose
Screws: Combination
Series: L9000 Series Mortise Lock
Strike: 10-072 Strike
Strike Height: 4-7/8 In.
Strike Number: 10-072 1316 *
Strike Type: Full Lip SQ
Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
