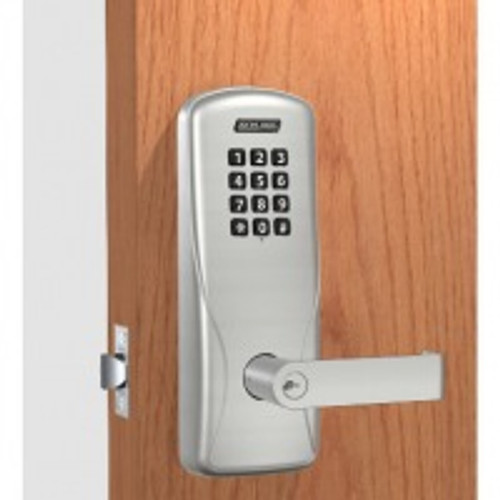

Schlage Cylindrical Latch CO100CY50KP Manually Programmable Lock, Office/Lockdown Function

Schlage CO-100 Series Cylindrical Latch Model CO-100-CY50-KP Manually Programmable Lock, Office/Lockdown Function

The CO-Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is an offline lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime right at the door. The CO-100 from Schlage offers you many choices. Cylindrical, mortise, and exit trim chassis options are available as well as a wide variety of finishes and levers to suite with your existing hardware. Mechanical key override is standard and compatible with multiple cylinder types. The CO-Series is also compatible with many popular brands of exit devices. The CO-Series has been tested the highest standards in the industry to ensure quality and reliability you have come to expect from Schlage. The CO-Series is ANSI/BHMA 156.25 Grade 1 certified and UL 294 listed.*

CO-100 Offline Electronic Lock Data Sheet

Features

• Added security and convenience of electronic access control without the cost or complexity of a fully networked system

• Tested to highest industry standards to ensure quality and reliability

• Manually programmable auto-locking classroom/storeroom cylindrical lockset

• Office Function: Lockset is normally secure. Inside lever always allows free egress. Interior pushbutton on inside housing may be used to select a passage or secured status. Meets need for lockdown function for safety and security

• You assign unique, sequential PIN codes (3-6 digitg) to each user (up to 500), minimizing the number of mechanical keys issued which protects the integrity of your key system

• Update users at the lock using the keypad

• Straight-forward & easy to follow installation and operating manual included

• Mechanical key override using 6-Pin Schlage standard cylinder (compatible with multiple cylinder types). You may select a different lever cylinder type, including less standard Schlage cylinder, or IC (Inter-changeable Core) cylinder prep

Specifications

• Dimensions: Exterior - 3.44" (W) x 9.46" (H) x 3.67" (D). Interior - 3.44" (W) x 10.10" (H) x 2.96" (D)

• Backset: Commercial 2-3/4" supplied

• Credential Verification Time: ≤ 1 second

• Visual/Audible Communications: Tri-colored LED’s & audible indicators

• Battery Life: Up to 2 yrs with 4AA (std. off the shelf; included)

• Operating Temperature - Exterior: -31° to 151°F (-35° to 66°C) (no battery)

• Operating Temperature - Interior: 32° to 120°F (0° to 49°C) (battery)

• Operating Humidity: 0 - 100% condensing

• Certifications: ANSI/BHMA A156.25 Grade 1, UL 294, UL 10 C, FCC Part 15, ADA
