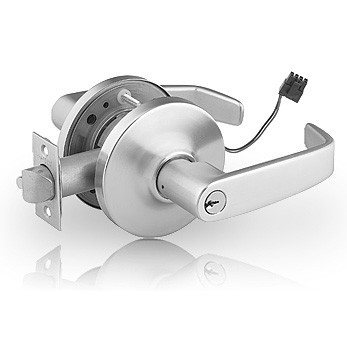

SARGENT Sargent RX-28-10G71-LL-12VDC-26D Electro-Mechanical Cylindrical Lever Lock w/ Request to Enter/Exit (Fail Secure)
$891.15
- Brand
- SARGENT
- SKU:
- RX-28-10G71-LL-12VDC-26D
- Condition:
- New
Manufacturer | Sargent ASSA ABLOY |
---|---|
Model | RX-28-10G71-LL-12VDC-26D |
Lock Functions | 71 - Electromechanical (Fail Secure): Power off, locks outside lever |
Electrical Specifications | 500mA at 12VDC |
Handing | Non-Handed |
Operating Voltage | 12VDC |
Mode of Operation | Fail Secure |
Monitoring Options | RX - Request to Enter/Exit - Monitors inside lever rotation |
Certifications | Positive Pressure – Meets UL 10C and UBC 7-2 (1997) |
ANSI/BHMA | Certified ANSI A156.2 Series 4000 - Grade 1 |
Compliances | ADA – All levers conform to ADA requirement for barrier-free accessibility California Code – Levers (L) conform to California Administrative Code Title 19 and 24 |
U.L. Listed | UL listed to USA and Canadian safety standards. Listed for 3 hour doors |
Warranty | 2 Year Electrical & 5 Mechanical |
Weight | 10.0000 |
SARGENT Sargent RX-28-10G71-LL-12VDC-26D Electro-Mechanical Cylindrical Lever Lock w/ Request to Enter/Exit (Fail Secure)
