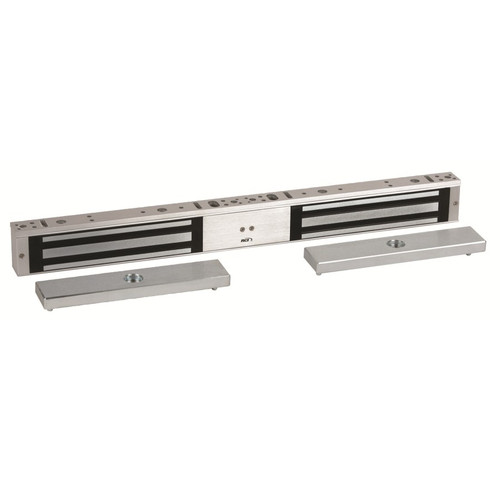

Rutherford Controls RCI 8372-2DSS Double Door Surface MiniMag Electromagnetic Lock w/ 2 Door Status Sensors
$605.48
- Brand
- Rutherford Controls
- SKU:
- 8372-2DSS
- Condition:
- New
Downloads | 1. Rutherford 8372 Specification Sheet (pdf) 2. Rutherford 8372 Installation Instructions (pdf) |
---|---|
Manufacturer | Rutherford Controls |
Model | 8372-2DSS |
Application | Double Outswinging Interior Doors without Mullion |
Housing Dimensions | 1” D x 1 7/8”W x 18 3/4”L (25.4mm x 47.6mm x 476.3mm) (including 3/16” (4.8mm) mounting bracket) |
Armature Plate Dimensions | 7/16”D x 1 1/2”W x 7 1/4”L (11.1mm x 38.1mm x 184.2mm) |
Door Type | Double Door |
Voltage | Field Selectable 12/24 VDC |
Power/Current Requirements | Max 0.52A at 12 VDC (each lock) Max 0.26A at 24 VDC (each lock) |
Holding Force | 750 lbs. (340 kg) |
Output Relays | Lock Status Output (LSS), SPDT 1 amp @ 24 VDC |
Wiring Requirements | 2 or 4 wires – power input Up to 4 or 8 wires output |
Operating Temperature | -14 to 140° F (-10 to 60° C) |
Mounting Type | Surface |
Certifications | cULus Listed, MEA, CSFM |
Warranty | Limited Lifetime Warranty |
Weight | 16.0000 |
