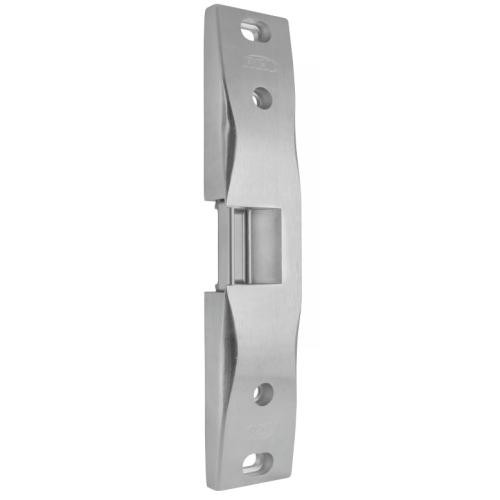

RCI 0162 x 32D Surface Mounted Rim Fail Secure Electric Strike, 12-24V AC/DC

Brushed Stainless Steel Surface Mounted Rim Strike, 12-24V AC/DC

Designed especially to operate with rim exit devices. The 0162 is completely surface mounted, no more cutting of the frame. The rugged stainless steel design accommodates hollow metal, aluminum and wood door frames.

The one-piece conventional keeper promotes even load distribution in the event of an attempted forced entry. The 0162 heavy duty housing is reinforced to eliminate twisting in the case of imperfect frames. The aesthetically pleasing design even takes into consideration personal injury because its smooth radius design reduces chances of catching.

Features:

• No frame cutting required - surface mounted

• Higher grade stainless steel ensures superior keeper strength

• Compatible with most major exit devices

• Accommodates exit devices with latch projections from 1/2" to 3/4" (13mm - 19mm)

• Ensure proper latch alignment with horizontal adjustment up to 1/4" (6.4mm) to compensate for door misalignments

• Field selectable voltage input -12 or 24VDC and 12 to 24VAC (even 11 to 16VAC)

• Horizontal solenoid prevents manipulation from vibration

• Modular plug-in wire connectors

• Selectively brushed stainless steel finish

• Non-handed

• Hex socket head cap screws for added support and tamper resistance

• Mounting spacer included providing enhanced latch engagement

• Tamper resistant

• Conventional keeper design - promotes even load distribution

• Installation tool included (hex key)

Certifications & Testing:

• UL 1034 Listed for 1500lbf of static strength

• Factory-tested to over 4-million cycles of operation

• US Patent 7,722,097

• 5-year limited warranty

Applications:

• Commercial Centers

• Industrial Buildings

• Educational Facilities

• Retail Outlets

• Health Care Facilities

• Office Complexes
