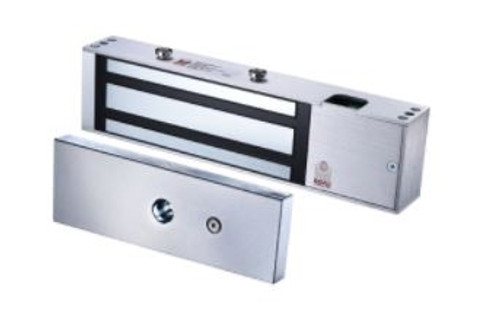

Rofu 8512-DE, Standard Single Door, Delayed Egress

STANDARD FEATURES

- Easy installation with keyhole mounting slides left to right
- Dual voltage 12/24 VDC field selectable
- Selectable Delayed Egress cycles: 15 or 30 seconds
- Selectable Nuisance Delayed Egress: 0~3 seconds
- Fail alarm: may be released upon activation of fire alarm
- Bond sensor feature for remote monitoring
- Optional remote alarm
- Fail-safe: releases instantly when power is disconnected. No residual magnetism
SPECIFICATION

HOLDING FORCE : 1200 LB
STANDARD FEATURE: Delayed Egress
CURRENT DRAW: 500 mA/12 VDC, 250 mA/24 VDC
DIMENSIONS:
Magnet: 10 1/2 x 1 9/16 x 2 11/16
Armature Plate: 7 1/4 x 5/8 x 2 3/8
