Record-USA

SimpleSwing 36 Low Energy Door Operator

SS-DB-S36

The Record Series SimpleSwing Operator is a power-open spring-close unit providing full
functionality conforming to ANSI A156.19 requirements. The self-monitoring microprocessor-based
control maintains precise regulation throughout the door open/close cycle. Two
operators can be connected together in a configuration providing synchronized operation.
Safety is additionally increased by the use of a redundant force limitation. - Surface applied
- Field reversible for Right hand or left-hand doors
- Inswinging or out-swinging doors
- Single pairs or double egress doors
- Doors that require up to 120° door swing
- Swing clear doors
- Interior or Exterior doors
- Up to 750 pounds per door leaf*
- 28” doors through 96” door openings
- Push to start applications eliminate the need for additional activation accessories and complex field wiring
- Latch assist function assures closing in areas with heavy stack conditions commonly associated with doors in air-conditioned and heated environments
- Includes two push plates
- Interfaces with electric strikes without additional relays or delays
- Simplelynk Display included standard
- ADA applications
- Breakaway adapter to prevent an operator or arm damage when abused

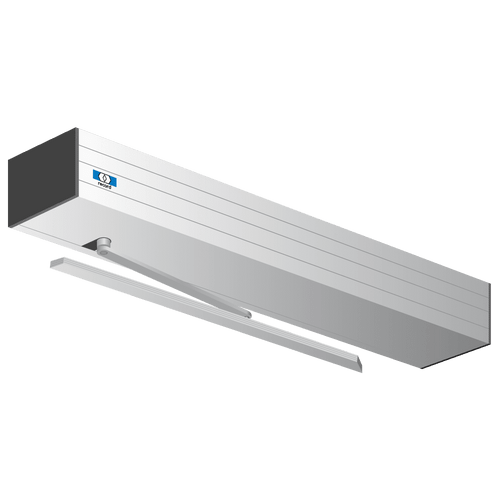

Image may not represent actual color or product
