RCI 912-WBT-R-HC 912 Series 2.4Ghz Touchless Actuator Kit, Wheelchair Icon, Includes 1 Switch and Receiver, Stainless Steel Finish
- Brand
- Rutherford Controls
- SKU:
- 912-WBT-R-HC
912-WBT-R-HC with Wheelchair Logo
912 Series 2.4Ghz Touchless Actuator Kit, Wheelchair Icon, Includes 1 Switch and Receiver, Stainless Steel Finish
912-WBT - Double-Gang Battery Power Touch-Free Actuator by RCI
Wireless, battery power, touch-free actuators come with infrared motion detection technology.
Applications: Used for Swing Doors, Sliding Doors & Glass Stone or Marble Surfaces.
Features and Benefits:
• Infrared Motion Detection Technology
• Touch Free Activation with hand or reflective object provides clean and hygienic activation (less than 130 ms)
• Silent activation for hospitals and other noise-sensitive environments
• 2.4GHz transmitter and receiver (line of site +30 meters/100ft)
• Receiver voltage input 12~30 VDC
• Low power consumption providing long battery life (batteries not included)
• Detection distance is adjustable from 3~30 cm (1”-12”)
• SPDT relay output can be used for signaling/switching automatic doors and access control (3A @ 30VDC)
• Selectable activation output between 1.5 seconds or “latching”, meaning activation “on”, activation “off”
• FCC, ISED, CE certified
- Low power consumption providing long battery life (4"AA"-912, 2"AA"-912N, 2"AAA"-912GL). Batteries not included
- Selectable activation output between 1.5 seconds or “latching”, meaning activation “on”, activation “off”

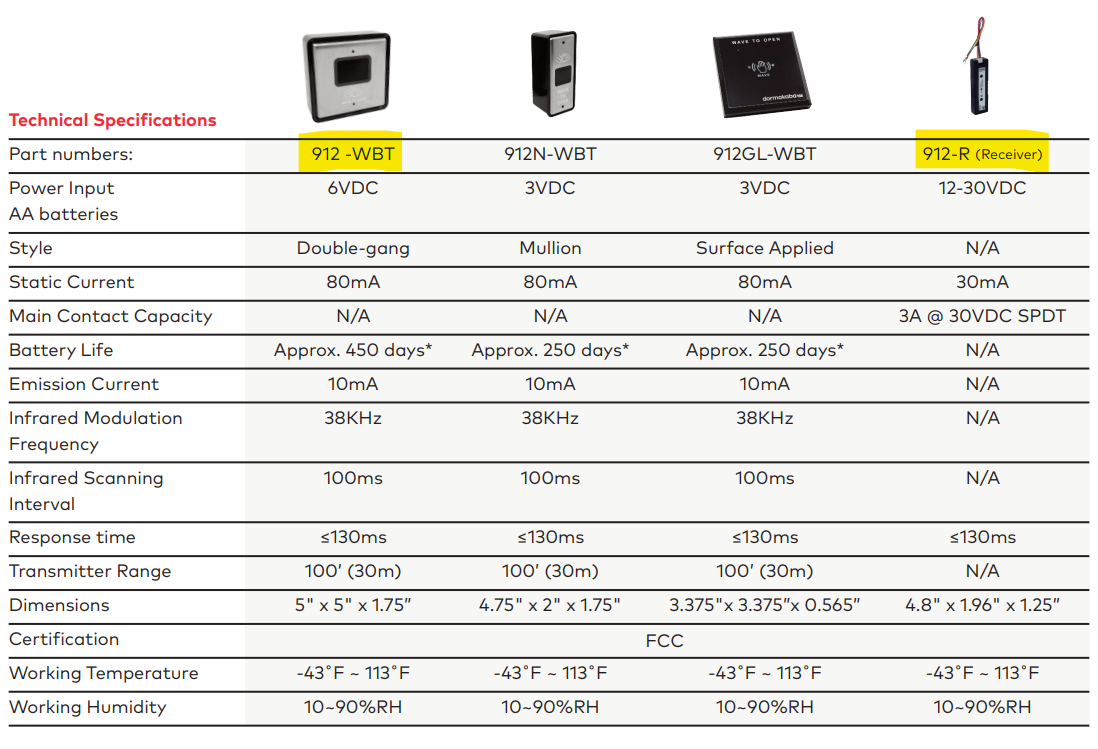

SPECIFICATIONS:
- Power Input AA batteries - 6VDC
- Style - Double-gang
- Static Current - 80mA
- Battery Life - Approx. 450 days*
- Emission Current - 10mA
- Infrared Modulation Frequency - 38KHz
- Infrared Scanning Interval - 100ms
- Response time - ≤130ms
- Transmitter Range - 100’ (30m)
- Dimensions - 5" x 5" x 1.75”
- Certification - FCC
- Working Temperature - -43 ÌŠF~ 113 ÌŠF
- Working Humidity - 10~90%RH
Components
These are components that are available with the RCI 192. They are sold separately or in kits. See product catalog.
- 912-WBT – Single switch
- 912N-WBT – Mullion (narrow) single switch
- 912GL-WBT – Single switch for glass or marble surfaces
- 912-R – Receiver
- Warranty 1 Year Limited
