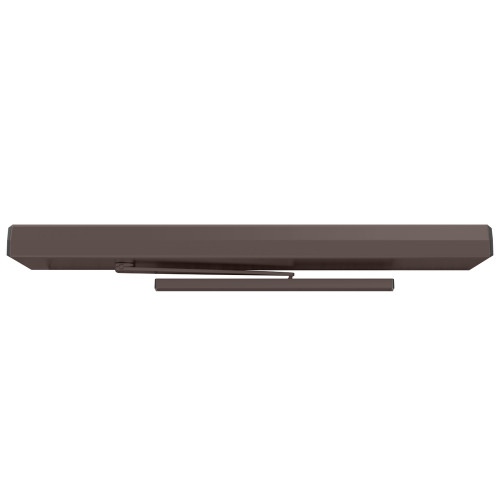

Norton 6311-690 6300 Series Low Energy Slim Profile Operator PULL SIDE Bronze

6311 HINGE (PULL) SIDE OF DOOR RIGID ARM AND SLIDE TRACK

The Norton 6300 Series Low Energy Operator offers a broad set of intelligent functions, such as latch boost, latch retraction and obstruction detection to safely secure a variety of moderate to high traffic openings. A unique design with one of the slimmest profiles available allows the 6300 to blend more seamlessly with the frame while fitting challenging applications with minimal header space. Modular design and simple controls also make for easy installation and setup.

Specifications:

Door Control (interior) (exterior) closing force shall be adjustable to ensure adequate closing control. Door Operator shall simulate conventional door closer opening and closing forces unless the power operator motor is activated. Door Operator shall have an electronic backcheck to cushion the door speed if the door is opened violently. [(Door Operator shall be AUTOMATICALLY ACTIVATED by either a slight push or pull in the direction of opening swing - Push and Go.) (Door Operator shall be SELECTIVELY ACTIVATED by external initiating device, i.e. wall switch, etc.) (Door Operator shall be both AUTOMATICALLY ACTIVATED and SELECTIVELY ACTIVATED.)] The operator shall have a selectable latch boost to provide additional closing force to overcome conditions that may prevent the door from latching. The unit shall have delay switches for motor activation, electric lock interfacing, and hold open time. Units shall interface with latch retraction exit devices or similar products and have 24VDC @ 1.3A maximum (fewer accessories) output for connection of electric strike, lock, radio frequency receiver, etc. Unit shall have a three-position Selector Mode Switch that will permit the unit to be switched "ON" to monitor for function inputs, switch to "H/O" for infinite hold open function or switched "OFF" which will disable function inputs allowing the unit to be used as a manual door closer. Unit shall be U.L. Listed for automatic closing door. The Unit shall be adjustable to provide compliance with the requirements of the Americans with Disabilities Act (ADA). The unit shall be certified by BHMA to meet A156.19 requirements. Unit shall meet UL325/991, UL10C standards.
