Norton 5845xWTO - ADAEZ Pro Plus Complete Operator, Wave To Open Wall Switch, and ADA1015P Hardwire Kit, Push or Pull Side Mounting Hardware

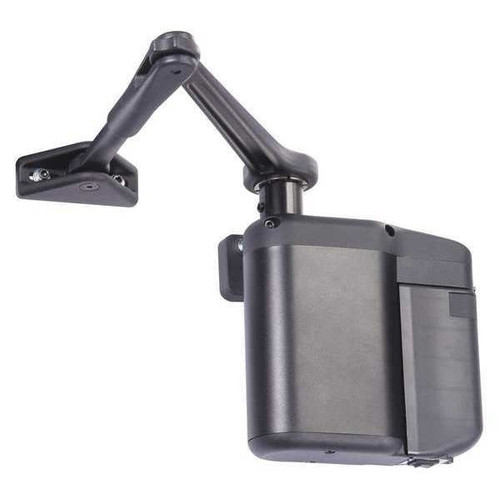

Norton 5800 Series ADAEZ Low Energy Power Door Operator

The 5800 Series ADAEZ PRO is a compact electromechanical door operator that is simple to install and use. This heavy-duty, low energy operator is intended for high traffic manual opening applications that occasionally require automatic operation like retail outlets, banks, schools or universities.

A Regenerative Power System charges an onboard battery pack that eliminates the need to run electrical wire to the unit. When used in automatic mode 25% of the time or less, the 5800 Series ADAEZ PRO will self-generate enough power to charge the battery pack for up to 12 years. Available for push or pull side mounting, this robust, non-handed operator ships standard with two wireless RF push buttons.

Not sure what to order? Try the 5800 ADAEZ PRO COMPLETE, which bundles all of the unique configurations of the PRO and PRO PLUS into one package. The COMPLETE unit can be mounted on either the push or pull side of the door and will work as a regenerative power system or as a continuous duty operator. It also includes both black and aluminum dress covers.

Features

Non-handed

95 degree opening

Push or pull side mounting

RF Radio Frequency stainless steel push buttons

Integral RF receiver

Shock absorbing arm

Black cover (standard); aluminum cover (optional)

24 VDC input port

Auxiliary activation input port

Built-in ON / OFF switch

Maximum door width - 48"

Maximum door weight - 250 lbs

Benefits

Regenerative Power System eliminates need to wire power to opening

Integral RF receiver paired with weatherized RF push buttons included for simple installation

Push or pull side mounting available

Non-handed

Controls doors up to 48" wide and 250 lbs in weight

Meets requirements for Americans with Disabilities Act (ADA)

Integral LED battery charge indicator

Acts like a manual door closer

Grade 1 heavy-duty, commercial design

Brushless DC motor/gearbox tested in excess of 10 million cycles

Dynamic braking for high wind applications

Electronic backcheck for abusive environments

Typical Applications

Retail Outlets

Banks

Schools or Universities

Hospitals

Healthcare Facilities

Certifications

ANSI/BHMA A156.19 certified

ETL tested to UL / cUL standard for automatic doors on fire & smoke barrier doors

Complies with requirements for Americans with Disabilities Act (ADA)

UL10c 90-minute positive pressure fire rating

Verified by GreenCircle to offer these energy savings as compared to similar products:GreenCircle seal

Specifications

Automatic Door Operator

Provide the operator with on-board diagnostics which will continually maintain control of door speed in wind or abusive environment condition.

Provide operator which, when operated manually, utilizes a clutch mechanism that disengages the motor gearbox assembly upon opening, then re-engages during the closing cycle to control spring force for even and smooth operation throughout the entire opening and closing cycle.

Provide operator that will continue closing door within ANSI A156.19 and 117.1 requirements without any external power supplied. Upon meeting an obstruction during the opening cycle the door shall remain under power for two seconds and then close under spring force; if the door meets and obstruction will closing, the door will maintain a closing force of 8 lbs or less.

Provide operator capable of operating doors up to 48 wide, weighing up to 250 lbs, and successfully tested for 1,000,000, automatic cycles.

Provide operator that will operate in climates with temperatures above -40 degrees F and has a two-year warranty.

Provide operator with two stainless steel, 1-3/4 x 4-3/4 wireless, jamb mounted, push-button transmitters with required signage. Locate push buttons as directed by architect and within ANSI A156.19 and 117.1 guidelines.

Provide operator which utilizes a triangular hardened steel output shaft to connect door arm with a two-piece tapered coupling for superior slip resistance.

Provide operator and push-button transmitter with circuit boards that have been specially coated to resist moisture and humidity making the electronics weather resistant.

Provide operator with integral heavy-duty cast aluminum shock-absorbing arm, which when fully extended is in full tension eliminating the need for an auxiliary door stop.
