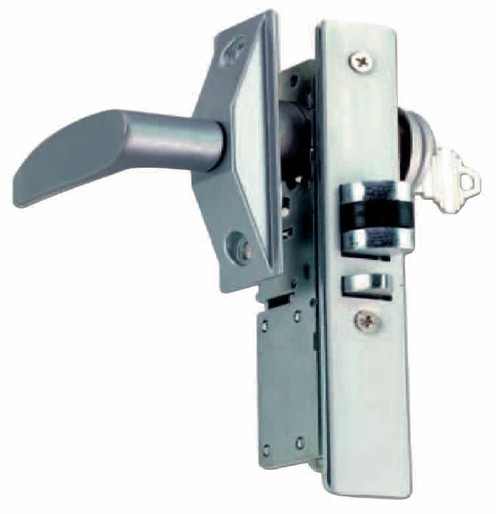

Mortise Dead Latch / Auto Latch for Aluminum Narrow Style Store Front Doors

For narrow stile glass/aluminum (storefront) door systems. Provides traffic control, key controlled latch hold back for convenient push-pull operation during business hours. For greater security, a latch guard or full length security astragal is recommended.

Base price is for latch only. Other components must be added (see accessories).

STANDARD FEATURES:
FUNCTIONS: Deadlatch
FINISHES: AL-aluminum, DU-duronodic are both included
HANDING: Non-handed, easily reversible
LOCK BODY DIMENSIONS: Width (7/8”), length (6”), case depth (1.63”-1.78” specific to backset)
BACKSET: 31/32”, 1-1/8”, or 1-1/2"
LATCH: 1/2” W x 1.0” L x 1/2” throw, Zinc alloy latchbolt with Delrin plastic insert, auxilary bolt zinc diecast, deadlocks latchbolt, and prevents manipulation
FACE PLATE: 1” W x 6-7/8” LSupplied with 4 face plates
Flat aluminum / duronodicRadius aluminum / duronodic
CYLINDERS: Accepts standard 1-5/32” diameter mortise cylinder. Requires MS A/R type cam.
MOUNTING HARDWARE: Individually boxed with machine screws for mounting, supplied standard with four face plates. Flat-2 ea., aluminum / duronodic finish. Radius-2 ea., aluminum / duronodic finish.
