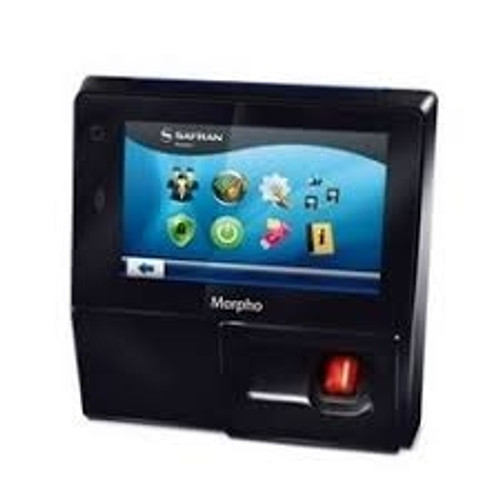

MorphoAccess WR SIGMA Bio 1:3000 Biometric Identification, 5" WVGA Color Touchscreen, Videophone Function, FBI PIV IQS Certified Optical Sensor, Weather-Resistant IP65 Rated

TECHNICAL SPECIFICATIONS

? CPU: ARM® Cortex™-A9 core 1GHz ? Linux Operating System ? 5” WVGA color Touch-screen, VGA Camera ? Loudspeaker & Microphone ? Audio & Video player ? FBI PIV IQS certified optical fingerprint sensor ? Contactless reader options: Prox®, iClass®, MIFARE®/MIFARE® Plus/DESFire®/NFC ? Network/Communication: Ethernet, RS485, RS422, USB (host & slave) Options: Wi-Fi, 3G cellular communication

Internal storage capacity: 512MB Flash, 512MB RAM + μSD Card slot • 3000 user records (2 fingers + 1 duress each), extendable up to 100 000 with μSD Card and licenses • 250 000 user IDs in white list • 1 Million transaction logs (100 000 w/o μSD Card) • 1 Million face picture logs (only w/ μSD Card) ? Inputs/outputs: Wiegand In & Out (customizable up to 512 bits), Door Relay, 3 GPI (including Door monitoring), 3 GPO ? Power supply: 12V-24V DC Power over Ethernet (PoE) option

? Tamper switches ? Operating conditions: • Temperature: -10°C to 55°C (14°F to 131°F) • Humidity: 10% to 80% (non condensing) ? 2 design options: Weather Resistant (IP 65 rated) or Indoor ? Compact with slim-profile: HxWxD = 153x151x58,5 mm (6x5,9x2,3 inches) ? Ultra-light: about 470 grams (depends on variant) ? Replaceable back-up battery ? EMC/Safety standards: CE, CB, FCC, UL294 ? RoHS, REACh and WEEE compliant

Awarded Best Biometric Product by the Security Industry Association, Morpho and Bioscrypt successfully joined forces to design the best of breed fingerprint identification terminal. Tailored for both Access Control and Time & Attendance applications, the MorphoAccess® SIGMA (MA SIGMA) Series implements no fewer than 20 patents to master biometric identification and deliver a host of additional features, together with the refined and enjoyable user experience.
