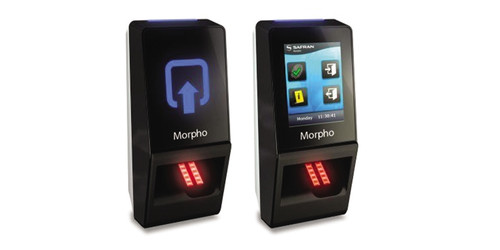

MorphoAccess SIGMA Lite+ Provides 1:3K User Biometric Identification (2 Finger + 1 Durress), Fake Finger Detection, 2.8" Touchscreen, Buzzer, IP65 Rated, FBI Certified IQS Optical Sensor

TECHNICAL SPECIFICATIONS

• CPU: ARM® Cortex™-A9 core 1GHz • Linux Operating System • FBI PIV IQS certified optical fingerprint sensor • Contactless reader options: Prox®, iClass®, MIFARE®/MIFARE® Plus/DESFire®/NFC • Network/Communication: - Ethernet, RS485, USB - Wi-Fi option • Power supply: - 12V-24V DC - Power over Ethernet (PoE)

• Internal storage capacity: 512MB Flash, 512MB RAM - 1:N mode: 3,000 user records, extendable to 10,000 with license (*3 templates each, including 1 duress) - 1:1 mode: 250,000 user IDs - 1 Million transaction logs • Inputs/outputs:Wiegand In & Out (customizable up to 512 bits), Door Relay, 2 General Purpose Inputs (including Door monitoring), 2 General Purpose Outputs • Tamper switches

Operating conditions: - Temperature: -20°C to 55°C (-4°F to 131°F) - Humidity: 10% to 80% (non condensing) • Ingress protection: IP65 • Mechanical impact protection: IK08(1) • HxWxD = 156*68*62 mm (6.14*2.68*2.44 inches) • Weight: 280 grams • EMC/Safety standards: CE, CB, FCC • RoHS, REACh and WEEE compliant

World’s #1 fingerprint technology inside • Latest generation Morpho embedded algorithms (MINEX and FIPS 201 approved) • Up to 250,000 users in 1:1 verification mode • Up to 10,000 users (30,000 templates) in 1:N identification mode • 1:10,000 user matching in 1 second • Accuracy maintained regardless of number of users in database • FBI PIV IQS certified optical sensor Full set of card reader options • Prox® •iClass® • MIFARE®/MIFARE® Plus/DESFire®/NFC
