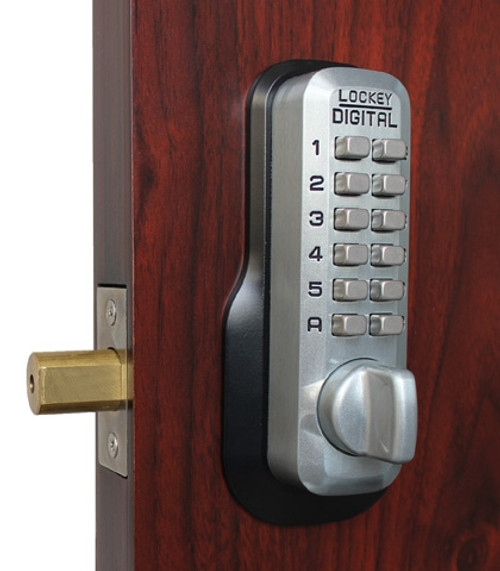

M210 EZ Mechanical Keyless Digital Combination Deadbolt Lock

Features

Mechanical, keyless deadbolt lock
Installs in minutes with EZ plates
One user code with thousands of possible combinations
Thumbturn on interior and exterior
Changeable handing
Adjustable deadbolt backset
Covers standard 2 1/8” hole

Options

Keypad: Single Combination, Double Combination (DC)
Finishes: Antique Brass (AB), Bright Brass (BB), Bright Chrome (BC), Jet Black (JB), Marine Grade (MG), Oil Rubbed Bronze (OB), NEW!! Satin Brass (SB)*, Satin Chrome (SC), Satin Nickel (SN), White (WH)
*Satin Brass not available in Double Combination.

Dimensions & Specifications

Dimensions: 5” L x 1 1/2” W x 1 7/8” D
Total Coverage with Trim Plates: 5 5/8” L x 2 1/2” W
Backset: Adjustable
Door Thickness: 1 3/16” to 2”, up to 5” with Extension Kit
Door Prep Edge Bore: 1”
Material: Zinc-plated steel
Teflon coated stainless steel interior components
For Exterior & Interior Use
Weather Resistant
Lifetime Mechanical Warranty

Compatible With

GB200M Gate Box
GB210 Gate Box
GB-ADD-A-BOLT Gate Box
Extension Kit
Deadbolt
Drive-In Deadbolt

Resources

Download Instructions
Download Spec Sheet
