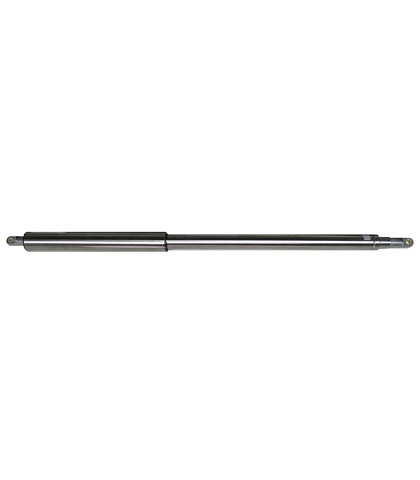

LOCKEY TB200 Hydraulic Gate Closer, for gates 50-125 lbs. Stainless Steel

Features

Closes small and large gates from 50-125 lbs.
Hydraulic/Nitrogen Gas controlled closing speed
Installs on top/middle/bottom
Works with left and right-hand gates
Mounts on the opening side of the gate
Pushes the gate closed
Mounting brackets and fitting bar included
Not compatible with gates less than 30 inches wide
To retain product warranty & restrict the gate opening angle, a gate stop must be installed

Options

Material: Steel (Black), Stainless Steel (Silver)

Dimensions & Specifications

Gate Weight: 50-125 lbs.
Gate Width: 30-52″
Max. Opening Angle: 100 degrees
Min. Operating Temperature: 15 degrees Fahrenheit*
Max. Operating Temperature: 122 degrees Fahrenheit*
Type of Gate Material: Vinyl, Steel, Wood, Chain Link**
Closing/Latch Method: Hydraulic/Nitrogen Gas
Material: Steel or Stainless Steel
Color: TB200: Black, TB200SS: Silver
Finish: TB200: Painted, TB200SS: Stainless Steel
Hinge Arrangements: In-line or Offset
Opening Pressure: Approx. 3-7 lbs.

*Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer.

**TB200 can be mounted on chain link gates with the TB-LINX.
TB-LINX sold separately.

Compatible With

TB-LINX
Gate Stop

Resources

Download Instructions
Download Spec Sheet
