8310-813

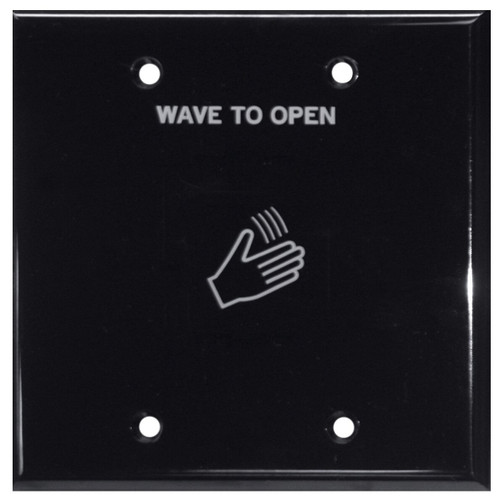

Standard Duty Touchless Actuator, Single & Double Gang, Text & Wave Icon, Black

Allegion offers the 8310 Series touchless actuators as part of its auto operator solutions. A pedestrian simply waves their hand in front of the wall plate. The technology senses the motion and acknowledges intent to enter. No contact with an actuator, door handle, push bar, or door is required.

Standard touchless actuators The LCN 8310-813 series of touchless actuators is designed for standard, medium-duty applications.

§ Flush mounted design: aesthetically pleasing and less susceptible to accidental damage
§ Silent activation: ideal for applications that seek to limit noise emission
§ Variety of colors and form factors: available in black or white for single gang, double gang, jamb and round mounting styles
§ Single and double gang face plates ship as pair

• Touchless Actuator, Single Gang and Double Gang (ships with two faceplates – single gang and double gang)
• ASA, Nylon, PC
• 4-24″ Range
• Medium duty applications
• Compatible with -880 receiver

*The Touchless Actuator may be mounted in conventional metal or plastic electrical gang boxes. Make sure the unit sensor does not come in contact with the metal gang box to avoid shorting out the unit.

Features:

Dimensions: 2.75” x 4.5” x 0.75”

Range: 2-24"

Feedback: Visible/audible

Hold time: 1 – 30 sec

Power: Wired

Actuation signal: Wired or 900 mHz Wireless
