The 4040SEH Sentronic is a holder designed to provide single point hold-open for fire and smoke barrier doors that must be used with a opposite side mounted UL listed door closer. The door is held open until current interruption releases the holding mechanism and the door closes. Single lever (track) arm is specifically designed for interior doors. Choice of finishes, track functions, and installation accessories meet virtually all life safety requirements.
The SEH Series is UL listed for smoke barrier or labeled fire doors. cUL listed for self-closing doors without hold-open. Tested and certified under ANSI Standard A156.15. Conforms to life safety code, NFPA 101.
Features:
Aluminum finish
Cast Iron material
All weather fluid is standard
Non-handed operation
This Closer can be mounted on either push or pull side of the door
UL and cUL listed hardware
Closer meets ADA requirements if installed properly
It interfaces with the fire alarm systems for safety
It functions as full rack and pinion door closer when hold-open function is not engaged or the current is interrupted
Hold-open force is adjustable
Momentary on/off switch board assembly available for testing door release. It also provides over-voltage protection

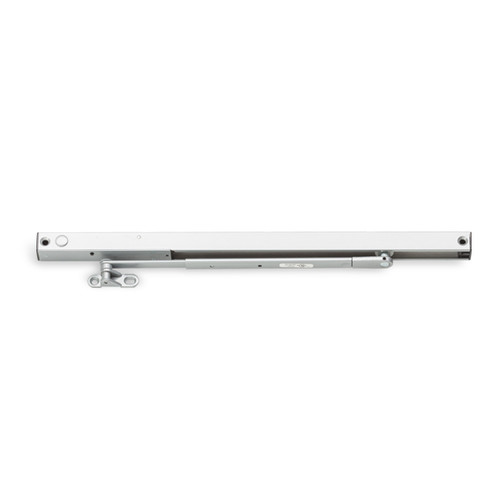

4040SEH Series Surface Mount Arm and Track Only, Door Holder Only, No Closer, 120V, Satin Aluminum Clear Anodized
