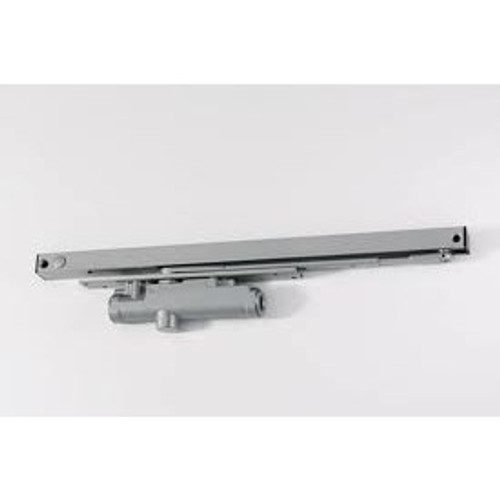

LCN 3131-H-LH-AL Hold Open Concealed In Door Closer Left Hand

Additional Information

LCN 3131 Concealed Door Closer, Size 1 for ADA applications. Left Handed with HOLD OPTION

LCN 3130 Series: Single acting Cast iron cylinder and standard arm concealed in top rail of door. Concealed track in head frame.

Door Thickness: 1 3/4(44 mm) minimum. Door Width: 2.2'(660 mm) minimum. Top Rail: minimum 4(102 mm) required.

Handing: left swinging doors

CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.

UL and cUL listed without hold-open for self-closing doors
Tested and certified under ANSI Standard A156.4, grade one

Packaging: Standard 3130 series closer shipped with standard arm, standard track and wood and machine screw pack
