LCN

2215DPS-STD RH AL AVB

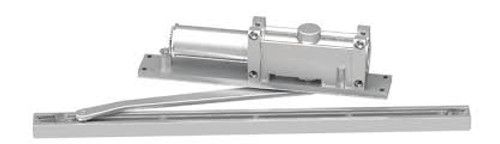

Standard Track Door Closer, Door Position Switch, Advanced Variable Backcheck, Right Hand, Aluminum

The concealed 2210 Series, heavy duty, high security track closer
features complete concealment with special components to minimize
tampering and vandalism. Forged steel, single lever arm and heavy
steel mounting plate are designed for correctional, vandal prone,
institutional, and other high traffic applications. A choice of finishes and
cylinder functions meet correctional and vandal resistant requirements.

Certifications:

Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour

Salt Spray, Meets BAA - Buy American Act

Body Construction:

Cast Iron Body
n Full Complement Bearing
n 1-1/2˝ Diameter Piston
n 11/16˝ Diameter Double Heat Treated
Pinion Journal

Fluid: All Weather Liquid X Fluid

Handing: Handed

Size: Sized, interior, exterior and vestibule 3-5 (refer to chart)

Warranty: 15 years (2210)

Cover: Metal, standard

Fasteners: TORX machine screw pack

Mounting: Concealed, single acting cylinder in head  framen Concealed, arm and track in top rail of door

Arms: Standard security arm and security track

Finishes/Colors/Powder Coat: Aluminum (689)
 Aluminum (689)
 Statuary Bronze (690)
 Light Bronze (691)
 Black (693)
 Dark Bronze (695)
 Brass (696)
