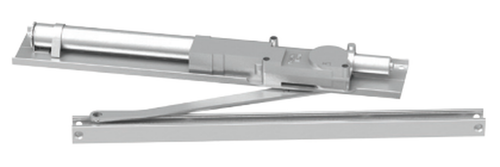

2035-3071 LH LCN Door Closer Cylinder Standard Cylinder Assembly, Left Hand

2035-STD-AL-LH - Door Closer by LCN

The concealed LCN closers feature a modern design for concealment in either the head frame or top rail of the door.

The concealed LCN 2030 Series PACER® is a heavy duty closer designed to fit in a narrow, minimum 1-3/4" aluminum transom. The single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.

Features and Benefits:

- Tested and certified under ANSI Standard A156.4.
- Available in Aluminum (689) finish.

The 2030 Series is UL & cUL listed for self-closing doors, without hold-open. Test and certified under ANSI Standard A156.4, grade one.

Specification Data:

- Standard 2030 Series closer shipped with standard arm, security track, mounting/finish plate, and wood and machine screw pack.
- Sized cylinders for interior doors to 4'6" and exterior doors to 3'6".
- Handed for right (RH or LHR) or left (LH or RHR) swinging doors.
- Aluminum frame requires minimum 1-3/4" (44mm) x 4" (102mm) tube.
- Closers to meet ADA requirements.

Door Width (Closer Size):

- 2035: Exterior Door Width - Size 5 (36" - 42"); Interior (48" - 54").

Track Function Option:

STD (Standard Track 2030-3038): Standard, non hold-open, non-handed track. Will accept hold-open clip and/or bumper assembly.

• Finish: Aluminum
• Series: 2030 Series Concealed Closers
• Type: Door Closers and Operators part
