Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

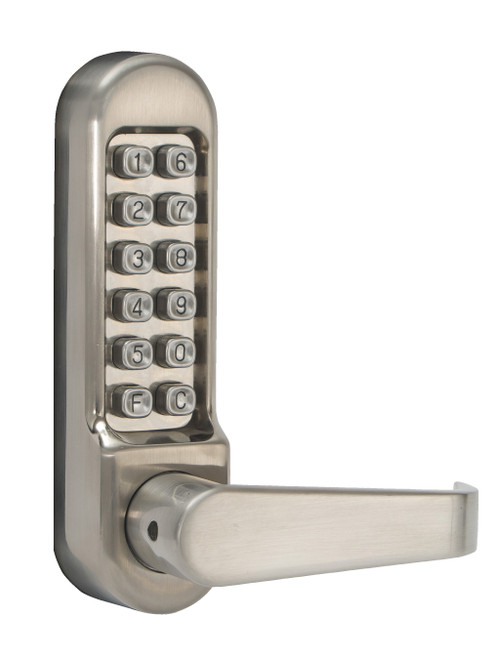

The Simplex 470 Series mechanical pushbutton locks provides exterior access by combination. This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements

Locking Device: Tubular latch

Number of Codes: Single access code (non-sequential)—one easy-to-manage code for all users

Programming: Lock is easily programmed via keypad once removed from door

Handing: Pre-assembled for right-hand door installations (easily changed in field)

Operation Modes:

• Pushbutton Access
• Passage (easily removed in field)

Economical: A cost effective access control solution

Key Override: Not available

Construction: Solid cast housings; cast knobs and levers

Numeric Keypad: Vandal resistant, metal pushbuttons

Handing: Non-handed, pre-assembled for right-hand door installations (easily changed in field)

Finishes: Satin Stainless 32D (630), Bright Brass (03), Antique Brass (05) housings and levers

Backset: 2¾" (70 mm) backset, 2⅜" (66 mm) backset

Latch: 3½" (89 mm) latch

Weight: 6.5 lbs. (2.94 kg)

Door Preparation: Easily installs on wood or metal doors. Requires four holes (two for through bolts, one for latch spindle, and one for latch support post).

Door Thickness: 1⅜ " (35 mm) to 2½ " (64 mm)

Supplies Included: Lock assembly, installation manual, template, and required hardware; as well as two 2½" (64 mm) x 8" (203 mm) cover plates and two 2" (51 mm) gaskets

Warranty: 1-year warranty
