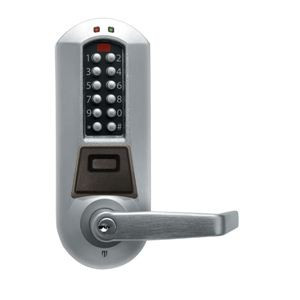

KABA Simplex / Eplex Kaba E-Plex E5786BWL Lever Pin/Prox Electronic Push Button Lock Mortise

$1,888.25

(No reviews yet) Write a Review

$1,888.25

Additional Information

Manufacturer	Kaba Access Control
Model	E5786BWL
Dimensions	3-3⁄8" (86 mm) H x 3-3⁄8" (86 mm) W x 3-13⁄16" (97 mm) D
Number of Codes	Multiple Users 3,000 Codes; over 100 million possible code combinations
Programming	Locks are programmed via E-Plex Advanced Access Control Software (not included) provides easy management of doors and users
Handing	Non-handed
Operation Modes	PIN access, Passage can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours, Lockout
Numeric Keypad	Vandal resistant, solid metal pushbuttons
Backset	2 3⁄4" (70 mm)
Latch	3⁄4" (19 mm) latch
Minimum Stile Recommended	5" (127 mm)
Interchangeable Cores	Interchangeable core cylinders, Best and Equivalents (6 or 7-pin Length) Not Included
Door Preparation	Easily installs on wood or metal doors; Four bolt installation; No wiring
Door Thickness	1 3⁄4" (44 mm) to 2 1⁄4" (57 mm) Preassembled to accommodate doors 1 5⁄8" (41 mm) to 2" (50 mm)
Operating Temperature	Front Housing: -31° F (-35° C) to + 151° F (66° C) - Rear Housing: -31° F (-35° C) to + 130° F (55° C)
Certifications	Americans with Disabilities Act (ADA)
ANSI/BHMA	ANSI/BHMA A156.2, Grade 1 Certification
U.L. Listed	3-hour, UL/ULC fire door rating for "A" labeled doors
Warranty	3-year warranty from date of installation; built-in warranty counter in lock memory
Weight	17.0000
