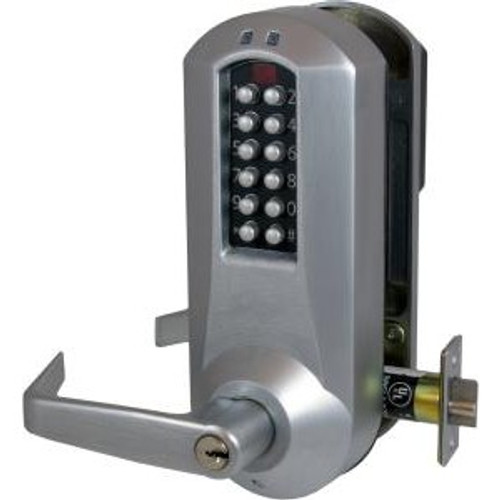

KABA Simplex / Eplex Kaba E-Plex E5231MWL Lever Electronic Push Button Lock Key Bypass Cylindrical

$833.98

(No reviews yet) Write a Review

$833.98

Additional Information

Manufacturer	Kaba Access Control
Model	E5231MWL
Dimensions	Exterior: 8-7⁄8" (225mm) H x 3-3⁄8"(86mm) W x 3-13⁄16" (97mm) D Interior: 8-7⁄8" (225mm) H x 3-3⁄16" (81mm) W x 2-1⁄8" (54mm) D
Number of Codes	3,000 access codes per door; over 100 million possible code combinations
Programming	Locks are programmed via E-Plex Advanced Software (not included) - provides easy management of doors and users
Handing	Non-handed
Operation Modes	PIN access per Access Schedules, Lockout, Passage can be toggled on/off or can be preprogrammed to relock after a certain number of hours (from 1 to 24)
Numeric Keypad	Vandal resistant, solid metal pushbuttons
Backset	2 3⁄4" (70 mm)
Latch	1⁄2" (13 mm)
Minimum Stile Recommended	5" (127 mm)
Removable Cores	Removable core cylinder, Medeco, ASSA and Yale Large Format, Not Included
Door Preparation	ASA 161 (Easily installs on door preparation with two additional through bore holes (wood or metal doors)
Door Thickness	1 3⁄8" (35 mm) to 2 1⁄4" (57 mm)
Operating Temperature	Front Housing: -31° F (-35° C) to + 151° F (66° C) - Rear Housing: -31° F (-35° C) to + 130° F (55° C)
Certifications	Americans with Disabilities Act (ADA)
ANSI/BHMA	ANSI/BHMA A156.2, Grade 1 Certification
U.L. Listed	3-hour, UL/ULC fire door rating for "A" labeled doors
Warranty	3-year warranty from date of installation; built-in warranty counter in lock memory
Weight	10.0000
