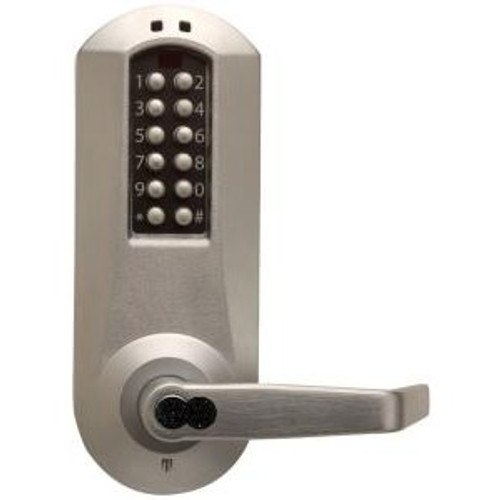

KABA Simplex / Eplex Kaba E-Plex E5210SWL Lever Electronic Push Button Lock Key Bypass Rim Exit Trim
$881.17
(No reviews yet)
Write a Review
- Brand
- Dormakaba Access
- SKU:
- E5210SWL
- Condition:
- New
| Manufacturer | Kaba Access Control |
|---|---|
| Model | E5210SWL |
| Dimensions | Exterior: 8-7ÃÂâÃÂÃÂÃÂÃÂ8" (225mm) H x 3-3ÃÂâÃÂÃÂÃÂÃÂ8"(86mm) W x 3-13ÃÂâÃÂÃÂÃÂÃÂ16" (97mm) D |
| Number of Codes | 3,000 Codes; over 100 million possible code combinations |
| Programming | Locks are programmed via E-Plex Enterprise Software and a laptop or netbook (not included) - provides easy management of doors and users |
| Handing | Non-handed |
| Operation Modes | PIN access Modes: Lockout, Passage can be toggled on/off or can be preprogrammed to relock after a certain number of hours (from 1 to 24) |
| Numeric Keypad | Vandal resistant, solid metal pushbuttons |
| Backset | Varies by exit device type |
| Minimum Stile Recommended | 5" (127 mm) |
| Removable Cores | Removable core cylinder, Schlage Large Format, Not Included |
| Door Preparation | ASA 161 (Easily installs on door preparation with two additional through bore holes (wood or metal doors) |
| Door Thickness | 1 3ÃÂâÃÂÃÂÃÂÃÂ4" (44 mm) to 2 1ÃÂâÃÂÃÂÃÂÃÂ4" (57 mm) |
| Operating Temperature | Front Housing: -31ÃÂÃÂÃÂð F (-35ÃÂÃÂÃÂð C) to + 151ÃÂÃÂÃÂð F (66ÃÂÃÂÃÂð C) - Rear Housing: -31ÃÂÃÂÃÂð F (-35ÃÂÃÂÃÂð C) to + 130ÃÂÃÂÃÂð F (55ÃÂÃÂÃÂð C) |
| Certifications | Americans with Disabilities Act (ADA) |
| ANSI/BHMA | ANSI/BHMA A156.2, Grade 1 Certification |
| U.L. Listed | 3-hour UL/ULC fire rating for "A" label doors |
| Warranty | 3-year warranty from date of installation; built-in warranty counter in lock memory |
Compatible with the following Panic Bars (less bar): Arrow S1250Dorex 8500R/8500FSargent 8888 Arrow S3883F/S3800Dorex 9500PR/9500FRVon Duprin 22/22F Black & Decker (K-2) QED111/112Dorma 9300/F9300Von Duprin 98/98F Cal Royal 9800Monarch 18R*, F18R*Von Duprin 99/99F Cal Royal 2200Precision 21/FL21Von Duprin XP98/99 Corbin Russwin ED5200/5200ASargent 2828Yale YME2100/2100 Detex 1001 BP1Sargent 3828Yale 7100 Detex 10/F10 SeriesSargent 8810E/8800 *(requires special K-Hub Adapter)
