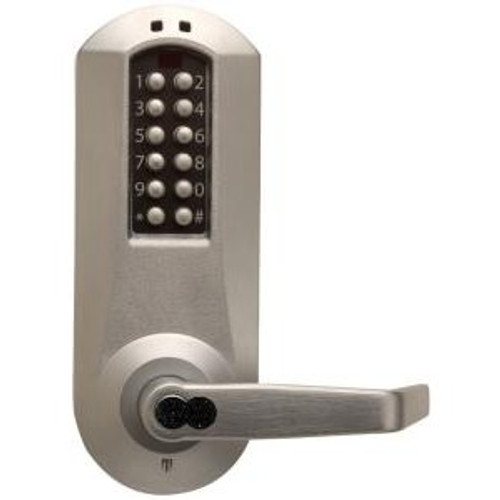

KABA Simplex / Eplex Kaba E-Plex E5086SWL Lever Electronic Push Button Lock Key Bypass Mortise

Kaba Eplex E5086-S-WL-626-41 Double Sided Electronic Mortise lock - IC Core For Schlage - Satin Chrome

Key Override -Interchangeable Core for "Schlage" Removable Core, Core not Included

Access Control: Electronic pushbutton lock eliminates problems and costs associated with issuing, controlling and collecting keys and cards. It provides interior and exterior access by combination.

Minimum Stile Required: 5" (127 mm)

Locking Device: American Standard Mortise: With 1¼" (32 mm) faceplate; without deadbolt

Number of Codes: Multiple Users—100 Codes; upgrades to 300 Codes with optional software

Programming: Locks are programmed via keypad or with optional Microsoft Excel-based software—simplifies management of doors and users as facility’s number of users and access points grow

Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field

Key Override: Key-in-Lever/Knob cylinders, small format interchangeable cores, large format removable cores

Operation Modes: • Single credential—access • Single credential—egress

Authority Levels: Five different levels allow who has access to specific lock functions, including Service Codes—programmed for one-time access or "come-and-go" access for 1 to 24 hours

User Parameters: Code length—adjustable to accept 4 to 8 digits Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds Re-lock time—adjustable from 2 to 20 seconds

Battery Operation: Batteries located in mortise housing; offers quick and easy battery replacement for institutions (four AA Alkaline batteries provide up to 100,000 cycles). Lock data is maintained if batteries fail.

Construction: Extra heavy-duty Grade 1 lock; solid cast housings; solid cast zinc levers, tested for extensive use in indoor and outdoor applications

Numeric Keypad: Vandal resistant, solid metal pushbuttons

Handing: Non-handed; pre-assembled for left-hand door installation—easily changed in the field

Backset: Mortise: 2¾" (70 mm) backset

Latch: ¾" (19 mm) latch

Ease of Installation: Utilizes existing mortise prep for simple installation

Door Preparation: Easily installs on wood or metal doors; four-bolt installation; no wiring

Door Thickness: 1¾" (44 mm) to 2¼" (57 mm). Pre-assembled to accommodate doors 1¾" (44 mm) to 2?" (54 mm)

Battery: Batteries located in mortise housing; provides quick and easy battery replacement for institutions; four AA batteries provide up to 100,000 cycles

Indicators: Audible and visual indicators; low battery visual indicator Audit

Capability: 3,000 Events; upgrades to 9,000 Events with optional software

Certification and Testing

Accessibility Standard: Americans with Disabilities Act (ADA)

Fire Rating: 3-hour, UL/ULC fire door rating for "A" labeled doors

Durability: ANSI/BHMA Grade 1 Certified for Mortise Electronic Locks (A156.13 and A156.25)

Environmental: Indoor/Outdoor Approved Front Housing: -31 °F (-35 °C) to 151 °F (66 °C); Rear Housing: -31 °F (-35 °C) to 151 °F (66 °C)
