Additional Information

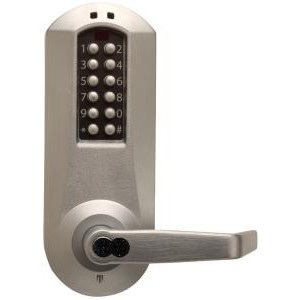

KABA Simplex / Eplex Kaba E-Plex E5066MWL Lever Electronic Push Button Lock Key Bypass Mortise
$826.00
(No reviews yet)
Write a Review
- Brand
- Dormakaba Access
- SKU:
- E5066MWL
- Condition:
- New
| Manufacturer | Kaba Access Control |
|---|---|
| Model | E5066MWL |
| Dimensions | Exterior: 8-7⁄8" (225mm) H x 3-3⁄8"(86mm) W x 3-13⁄16" (97mm) D Interior: 8-7⁄8" (225mm) H x 3-3⁄16" (81mm) W x 2-1⁄8" (54mm) D |
| Number of Codes | 100 access codes per door (upgrade to 300 via software); over 100 million possible code combinations |
| Programming | Locks are programmed via keypad or with optional Microsoft Excel™ based software simplifies management of doors and users as facility’s number of users and access points grow |
| Handing | Non-handed |
| Operation Modes | PIN access Modes: Lockout, Passage can be toggled on/off or can be preprogrammed to relock after a certain number of hours (from 1 to 24) |
| Numeric Keypad | Vandal resistant, solid metal pushbuttons |
| Minimum Stile Recommended | 5" (127 mm) |
| Removable Cores | Removable core cylinder, Medeco, ASSA and Yale Large Format, Not Included |
| Door Preparation | ASA 86 door preparation with two additional through bore holes |
| Door Thickness | 1 3⁄8" (35 mm) to 2 1⁄4" (57 mm) |
| Operating Temperature | Front Housing: -31° F (-35° C) to + 151° F (66° C) - Rear Housing: -31° F (-35° C) to + 130° F (55° C) |
| Certifications | Americans with Disabilities Act (ADA) |
| ANSI/BHMA | ANSI/BHMA A156.2, Grade 1 Certification |
| U.L. Listed | 3-hour, UL/ULC fire door rating for "A" labeled doors |
| Warranty | 3-year warranty from date of installation; built-in warranty counter in lock memory |
