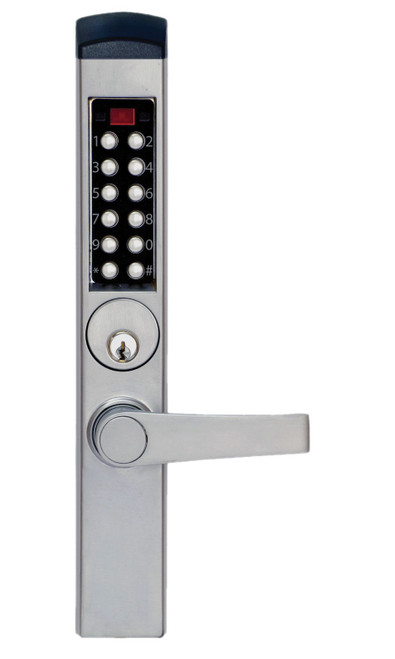

KABA Simplex / Eplex Kaba E-Plex E3765MSNL-626-41 Lever Electronic Push Button and PROXIMITY Card Reader Lock Narrow Stile (Schlage "C" Keyway) in Satin Chrome Finish.

The E-Plex 3700 narrow stile electronic pushbutton lock has up to 3,000 users, 30,000 Audit Events, retrofits various Adams Rite mortise locking devices, and supports PIN only, Prox card only and PIN + Prox.

Access Control: Electronic PIN/PROX lock for narrow stile aluminum glass doors—with dual credential capability—PIN and/or PROX card (HID,125 kHz, 26 to 84-bit format). Lock is scheduled to require credentials based on security and convenience requirements.

• PIN only


• PROX card only


• PIN + PROX card

Locking Devices: Retrofits inside trim for Adams Rite locks 1850, 1950, 4070, 4510, 4520, 4530, 4710, 4720, 4730, 4900, 4920AN, MS 1850S, MS 1950S, and 8400 Series (not included). Adapter Kit available for various manufacturers’ narrow stile Exit Devices; see accessories section.

Number of Users: Multiple Users—3,000 Users; (300 using LearnLok feature)

Audit Trail: 30,000 Events with optional software

Programming: Locks are programmed via keypad with LearnLok feature or via optional E-Plex Enterprise Software—provides easy management of doors and users

Operation Modes:

• PIN, card or dual credential access


• Lockout


• Passage—PIN or key enabled, can be pre-programmed to re-lock after a certain number of hours (from 1 to 24)

Authority Levels: Six different levels allow who has access to specific lock functions, including: Service Codes from single event up to four-day access, programmable in advance, and super user with 24-7 PIN access

User Parameters:

• Code length: adjustable to accept 4 to 8 digits


• Anti-tamper lockout: adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds


• Re-lock time: adjustable from 2 to 20 seconds

Ease of Installation: No wire installation—eliminates wiring to or through the door—no risk of pinched wires

Construction: Extra heavy-duty lockset, solid cast housing, solid cast lever or thumbturn wear tested for extensive use in indoor and outdoor applications

Handing: Non-handed, easily changed in the field

Backset: 31⁄32" (25 mm) minimum

Minimum Stile Recommended: 2" (51 mm)

Key Override:

• Mortise Cylinder: Mortise Cylinder in Schlage "C" Keyway

Door Preparation: Easily installs on narrow stile doors with four mounting screws

Door Thickness: 1¾" (44 mm)

Accessibility Standard: American with Disabilities Act (ADA)

Durability: Designed and fully tested to meet rigid life cycle test and operating reliability per BHMA Grade 1 requirements

Environmental: Indoor/Outdoor Approved Front Housing : -31 °F (-35 °C) to 151 °F (66 °C)

Warranty: 3-year warranty from date of installation; built-in warranty counter in lock memory
