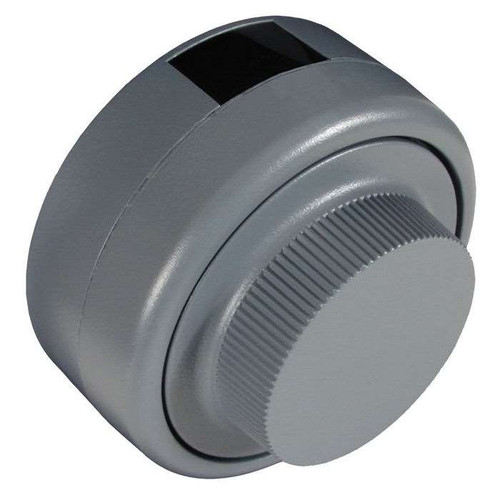

KABA MAS/MAS-HAMILTON ROUP | X10XRDXXTZMEZ1A
Security Lock, Standard OEM, Distributor, Self-Powered, Housing Display, Standard, Bolt, Relocker Case Cover, 4.5" Door

X-10 RND DBLT W/2X TP 1.61IN X-10X STD OEM SELF POWRED ROUND DBOLT/10-32.5 2X TAPPED 1.61 IN/40.89MM DOOR

The Kaba Mas X-0 series is the trusted choice for securing the US Government’s most sensitive material. The X-0 series was first introduced in 1992 as the lock to meet the strict requirements of Federal Specification FF-L-2740. This specification is the US Government’s highest security standard for electro-mechanical locks. The X-10 represents the latest edition to this secure tradition. The X-10 is the GSA (General Services Administration) approved lock for FF-L-2740, latest revision B, Style 1 applications. The X-10 is approved by the GSA for use on approved Class 5 and 6 filing cabinets and Class 5 Security vault doors.

Kaba MAS X10XRDXXTZMEZ1A, X-10 High-Security Self-Powered Safe Lock - Round Housing/Display - Dead Bolt, 10-32.5 (2X) Tapped Holes - Standard Relocker/Case Cover -4.50" (114.3 mm) Door

PRODUCT FEATURES:
• Power: Internal, self-powered by “Green” Rotational electromechanical PowerStar™ technology.

COMBINATIONS — 3 MODES:
• Single: 1 million combinations
• Dual: 500 billion combinations
• Supervisor/Subordinate: 2 million combinations

• Direct Dial: No need to clear before entering combination. Once you stop turning the dial, the power will shut down after 40 seconds.

• Memory:Non-volatile

• LCD (Backlit): Limited View Backlit Liquid Crystal Display with visual controls makes dialing easy and exact.• Combination Changes: (LCD indicator in change key mode.) Combination changed with correct combination or serial number.
• Random Number View:True Scramble
• Daylocking: No
• Back Dialing: No
• Lock Reset: Automatic when bolt is thrown or 40 seconds after turning has stopped.
• Manipulation: Meets all requirements of FF-L 2740B. Resists opening through manipulation for 20 man-hours.• Audit: The X-10 records all openings, and the record is non-resettable. The X-10 records unsuccessful attempts after 3 incorrect combination attempts and resets after a correct opening.

PERFORMANCE FEATURES (PER FF-L-2740B)

•Temperature: Tested -10°F to 155°F Operational Range.

• Salt Spray: Operational After 72 hours of continuous exposure (per UL 768 Salt Spray Conversion Test).

• Cycle Test: Meets or exceeds FF-L-2740B specifications.

• Humidity:Operational after 10 days of 140°F @ 98% humidity (Operational after 10 days testing per MIL-STD-810E, Method 507.3, Procedure III, Temperature Cycling 86°F to 140°F @ 98% RH)

• Stress: Operational after 7 days in a stress chamber @ 194°F (per UL 768 Aging Stress Distortion Test).
• Vibration: MIL-STD-810
• Shock: MIL-STD-901
• Electrical Discharge: 250KV on Dial
• Electromagnetic Pulse: Meets FF-L-2740B specification for simulation of high altitude nuclear blast.
• Case & Bolt Strength: 600 pounds in two directions.
