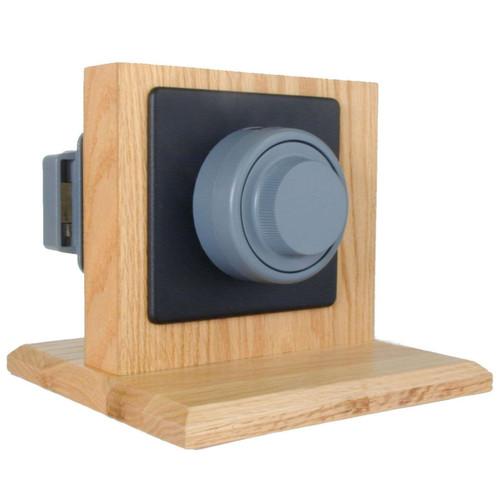

Dormakaba MAS CDX-10 521025/521030 Strike Type #1: For in-swing door GOVERNMENT APPROVED FOR PEDESTRIAN DOORS

The CDX-10 High-Security Lock by Kaba Mas

Strike Type #1: For in-swing door 521025/521030 Kaba Mas Safe Locks CDX-10 W/NON-DR PLT/STK TYPE 1 CDX-10 HIGH-SECURITY GOV LOCK INCL NON-DRILL RESISTANT PLATE AND STRIKE TYPE 1 5340-01-498-2759

CDX-10 High-Security Lock - Pedestrian Door Deadbolts.
The Kaba Mas CDX-10 consists of an X-10 high-security lock, Federal Specification FF-L-2740B, mounted on a deadbolt base plate. The base plate is surface-mounted to the inside face of the door. The deadbolt base plate has two essential features.

First, it provides a means of latching the bolt in the retracted position. This prevents the bolt from being inadvertently extended.

Second, turning the knob on the base plate will retract the bolt to allow egress.

The Kaba Mas CDX-10 was approved by GSA to meet requirements of Federal Specification FF-L-2890B, Type VI.

The X-10 is approved by the GSA for use on approved Class 5 and Class 6 Filing Cabinets and Class 5 Security Vault Doors. The X-10 is self-powered using "green" PowerStar™ technology. Simply rotate the dial to power up the lock and enter the combination. Intuitive, visual controls guide the operator through programming and audit features. The X-10 provides all the benefits of high-security electronic locking while maintaining the reliability of a mechanical lock, independent of batteries or outside power sources.

Secure Tradition.
The Kaba Mas X-0 series is the trusted choice for securing the US Government's most sensitive material. The X-0 series first introduced in 1992 as the lock to meet the strict requirements of Federal Specification FF-L-2740. This specification is the US Government's highest security standard for electro-mechanical locks. The X-10 represents the latest edition to this secure tradition. The X-10 is the GSA (General Services Administration) approved lock for FF-L-2740, latest revision B, Style 1 applications. The X-10 is approved by the GSA for use on approved Class 5 and 6 filing cabinets and Class 5 Security vault doors.

Why the X-10?
The X-10 was designed and developed as a direct result of the latest revision to federal specification FF-L-2740, now Revision B. This revision calls for two distinctly different lock styles. Be aware that the characteristics and operating features of a "Style 1" and "Style 2" lock are not equal! The X-10 is the only self-contained lock and now, with the backlit LCD display, clearly represents the best overall value. The X-10 is the lock awarded the distinction of being approved for Style 1 Applications.

User-Friendly Features.
The X-10 was designed with similar features and functions of its predecessor, the X-09. This minimizes the need for user training. The X-10 maintains the already familiar product operating features. The X-10 uses the same "Green" self-powered technology - simply rotate the dial to power-up the lock. The proprietary Kaba Mas self-powered feature eliminates the concern of unexpected failure due to battery life. The X-10 retains the same three security modes, along with a full complement of audit features.

What's New?
The following chart lists the enhanced features of the X-10 versus its predecessor the X-09:

Kaba Mas Limited Use Clause for X-10 Series Link

The X-10 has been designed to enhance user-friendly features while improving security. For example, the lock case incorporates a through case mounting feature to improve to improve ease of installation while protecting the lock's internal electronics and mechanisms. The lock case has a security seal which provides a visible indication the lock has been accessed.
