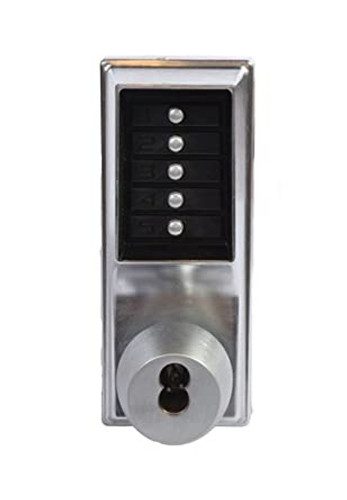

Dormakaba Simplex LP1000 Series Model LP1020 Panic/Exit keyless lock with Interchangeable Core KEY OVERRIDE (less the core)

KABA LP1020 With Key Override Option (core not included).

The Simplex LP1000 Series provides exterior access by combination, while allowing free egress with Exit Device (not supplied). This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

Features:

• No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements

  Locking Device Options: Rim Exit Device: Compatible with most leading brands of Exit Devices—see list below (Exit Device and mounting hardware not included)

  Exit Device Compatibility:







  Black & Decker (K-12) QED111/112	Detex 10/F10 Series
  Cal Royal 5000/F5000	Dorma 9100, 9300
  Dorex 9500PR/9500FR	Dorex 8500R/8500F
  Detex Advantex Series 10, 20, 21,40, 50, 51
  Monarch XX-R*, FXX-R, 18-R*, F-18-R*, 17-R, F-17-R, XX-V*, F-XX-V*, 18-V*, F-18-V*, F-XX-V*, 11-R*, 11-V*
  Von Duprin 22, 88 NL, 98, 99




  *(requires special K-Hub Adapter Kit)

  Cannot be used with mortise design or vertical rod Exit Devices

  ATTENTION: Compatibility is subject to change if modifications are made by Exit Device manufacturers without Kaba’s knowledge

  Number of Codes: Single access code—one easy-to-manage code for all users

  Handing: Factory-handed; not field reversible




  Operation Modes:




  • Pushbutton Access




  • Exit Device may be "dogged" without affecting the LP1000





  Economical: A cost effective access control solution

  Technical Data:

  Construction: Heavy-duty cast front housing; heavy-duty mounting plate; fixed ADA-compliant lever

  Numeric Keypad: Vandal resistant, solid metal pushbuttons

  Handing: Factory-handed; not field reversible

  Exit Device Strike: Supplied with Exit Device

  Tailpiece:




  • 2¾" (70 mm) tailpiece for Exit Device operation from outside




  • Optional 5" (125 mm) tailpiece for freezer doors (sold separately, part # 74773-000-01)





  Minimum Stile Recommended: 5" (127 mm)

  Weight: 8 lbs. (3.6 kg)

  Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included

  Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included

  Door Preparation: Recessed through bolts may be required for Exit Device preparation

  Door Thickness:




  • 1" (35 mm) to 2¼" (57 mm)




  • Optional 5" (127 mm) tailpiece (sold separately, part # 74773-000-01)





  Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant lever

  Durability: Weather resistant

  Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
  Warranty: 3-year warranty
