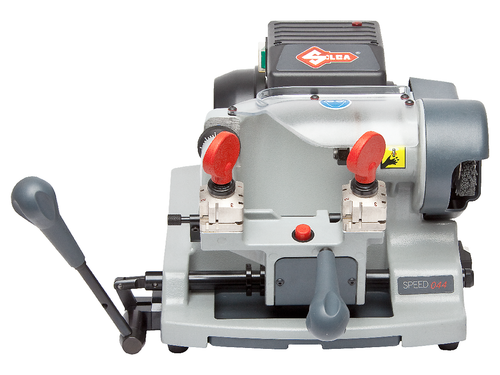

iLco SPEED 044 HD Semi-Automatic Key Machine
$1,889.08
- Brand
- KABA ILCO
- SKU:
- 044 HD 110V
- UPC:
- 036448539338
Speed 044 Semi-Automatic
The Speed 044 is designed for duplicating edge cut automotive, residential and commercial keys. The semi-automatic design allows the operator to duplicate keys with speed and accuracy.
Once keys are loaded, the spring loaded carriage is engaged by the press of a button. The lever is then moved manually to control the carriage movement during the cutting cycle. The Speed 044 Semi-Automatic is loaded with features that any user will readily appreciate.
- The spring loaded carriage is engaged by the press of a button and applies a consistent cutting pressure while in automatic mode
- Four sided, nickel plated jaws for clamping the majority of all edge cut/flat type keys. Smooth rotation by simply twisting into position.
- Slotted jaw surfaces accommodate tip stop bars and a rigid shoulder gauge design to allow for greater accuracy when loading and gauging keys.
- Wide spacing 3 1/2” (88.9 mm) spacing between clamps accommodate large bow (head) and long blade keys, including flip style keys
- Depth tracer system with micro adjustment for precise calibration in increments of .00098” (0.025mm)
- TiN (Titanium Nitride) coated cutter for longer life and oxidation resistance
- Nylon deburring brush
- Electro-magnetic “main” safety switch with a separate cutter motor switch for easy access.
- Large transparent cutter safety shield contains chips and provides a storage area for accessories
- Large drawer-type swarf (chip) tray under the carriage for easy access
- Mounting bracket included for securing the machine to counter
- Two year warranty
Power Supply: 120V-60Hz Maximum absorbed power: 2.8 Amp, 200 Watt Cutter motor: single phase and speed Movements: by ball joint on rectified carriage Tool Speed: 1350 rpm Carriage Runs: 1.65” (42 mm) |
Cutter: TiN coated Brush: Nylon, 5/8” (15.87 mm) bristles Dimensions: Width: 22.8” (580 mm) Depth: 18.1” (460 mm) Height: 9.8” (250 mm) Weight: 31 lbs.(14 kg) |
