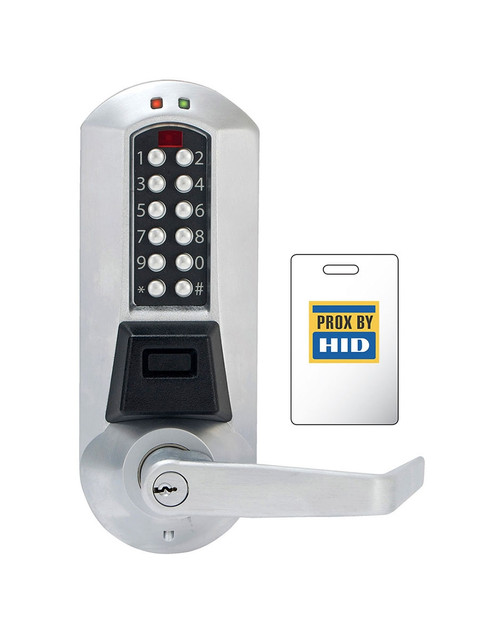

Dormakaba E-Plex 5700 series Proximity access control

Locking Device Options:

• Cylindrical: Cylindrical latch with 3-hour UL/ULC fire rating

• Rim Exit Device: Compatible with most leading brands of Exit Devices (Exit Device and Mounting Hardware not included)

• American Standard Mortise: With 1" (25 mm) and 1¼" (32 mm) faceplate; with and without deadbolt

Number of Users: 3,000 (per door) with software; 300 in LearnLok mode

Programming: Locks are programmed simply via the keypad using LearnLok Feature without any software, or with optional E-Plex Enterprise Software to manage a large number of doors and users

Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field

Key Override: Key-in-Lever/Knob cylinders, small format interchangeable cores, large format removable cores

Scheduling:

• Access schedules—up to 16 different access schedules may be programmed into the lock

• Holiday/Vacation—up to 32 different holiday/ vacation blocks may be programmed into the lock

Operation Modes:

• PIN access

• Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours

• Lockout

Authority Levels: Five different levels allow who has access to specific lock functions, including Service Codes—programmed for one-time access or "come-and-go" access for 1 to 24 hours

User Parameters:

• Code length—adjustable to accept 4 to 8 digits

• Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds

• Re-lock time—adjustable from 2 to 20 seconds
