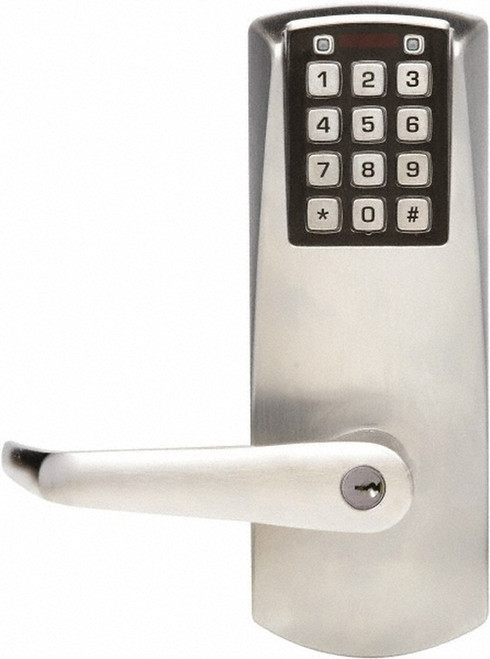

DormaKaba E2031XSLL E-Plex 2000 Cylindrical Lock, 100 Access Codes, 1,000 Audit Events, 2-3/4" Backset, 1/2" Throw, KIL, Schlage C Keyway

No Wires: Requires no wiring to or through the door—eliminates risk of damage from pinched wires that can result in costly callbacks

Locking Device Options:

• Cylindrical: Cylindrical latch with 3-hour UL/ULC fire rating

Number of Codes: Multiple Users—100 Codes

Handing: Non-handed; pre-assembled for left-hand door installations—easily changed in the field

Audit Trail: The most recent 1,000 events are recorded in memory, including the use of mechanical key override. Software is required to view Audit Events.

Programming: Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software

Key Override:

• Optional Key-in-Lever cylinder in Schlage "C" Keyway with black cap

Operation Modes:

• PIN access
• Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours
• Lockout

Authority Levels: Five different levels allow who has access to specific lock functions, including:

Master Level — performs all set-up and programming functions
Manager Level — administers common programming functions
Access User Level — entry granted with valid PIN
Service Level — codes for single event or single day access, programmable in advance
Maintenance Level — no access is granted, information can be uploaded/downloaded to/from the lock

User Parameters:

• User Parameters: Code length—adjustable to accept 4 to 8 digits
• Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
• Re-lock time—adjustable from 2 to 20 seconds

Construction: Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications

Handing: Non-handed, pre-assembled for left-hand door installation—easily changed in the field

Backset:

• Cylindrical: 2¾" (70 mm) backset, 2⅜" (60 mm) backset

Latches:

• Cylindrical Models: ½" (13 mm) throw latch

Strikes: Cylindrical locks packaged standard with both ANSI A115.3 "T" Strike and A115.2 ASA Strike

Minimum Stile Required: 5" (127 mm)

Key-in-Lever Cylinder: 1539 6-pin cylinder—Schlage "C" Keyway

Door Preparation:

• Cylindrical and Exit Trim—ASA 161 (easily installs on door preparation with three additional through bore holes; wood or metal doors)

Door Thickness:

• Cylindrical Model: 1⅜" (35 mm) to 2½" (64 mm); pre-assembled to accommodate doors 1⅝" (41 mm) to 2" (50 mm)

Accessibility Standard: Americans with Disabilities Act (ADA)

Fire Rating: UL 10C fire rated

Durability: ANSI/BHMA Grade 1 Certified (A156.25, A156.2, A156.13, A156.3)

Environmental: Indoor/Outdoor approved; -31 °F (-35 °C) to 151 °F (66 °C)

Warranty: 3-year warranty from date of installation; built-in warranty counter in lock memory
