Kaba Access E79N-1031-LL-KF-00-626 E-Plex 7900 Series Electronic Cylindrical Lock, Satin Chrome

$952.09

(No reviews yet) Write a Review

Brand: Dormakaba Access
SKU:: E79N-1031-LL-KF-00-626

Description
Show Reviews

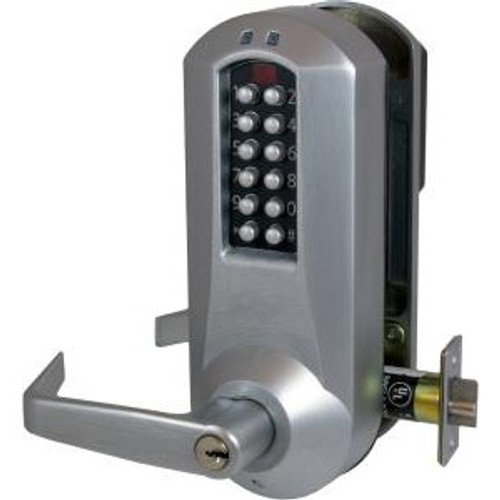

E-Plex 7900 Series Electronic Cylindrical Lock

E79N-1031-LL-KF-00-626 (EA/1)

E-Plex 7900 Series Electronic Cylindrical Lock with North America Zigbee Configuration, MiFare RFID, 2-3/4" Backset, Long Return Levers, Key-In-Lever, Schlage C Keyway, 626 Satin Chrome Finish

With a streamlined design, this cost-effective, heavy duty electronic lockset is built for performance. The most versatile E-Plex model to date, it functions in standalone or wireless modes for cylindrical, mortise, and exit trim applications. The E-Plex 7900 offers the same trusted function and reliability customers have come to love with other E-Plex offerings. With variable models each designed to function with a designated list of credential types, E-Plex 7900 can be trusted in many access control environment.

Proximity (125kHz)
MiFare
iCLASS Legacy

Features

Integrated wireless access control
Integrated RFID reader only lock - not push buttons
Streamlined design
More secure with door monitoring and sensing capabilities

Technical Data

Handing:
Left or right factory handed mortise, field reversible handing (lever and mortise)

Levers (inside & outside):
ADA compliant, outside lever free to rotate upward and downward in locked
mode.
Lever clearance (space from end of lever to door):
Long Lever: 3/8" (9.5 mm lever clearance)
Short Lever: 2" (51 mm lever clearance)
Elevon & Gala Lever: 2" (58 mm lever clearance) (non-key override, inside
levers only)

Key Override Ilco KIL cylinder, keyed-alike, keyed different (includes adapter for various KIL cylinder), Best small format IC prep 6-7 pin (core not included) Deadbolt 1" (25 mm) (for ASM mortise) solid metal, projected by inside thumbturn and retracted with the latch by the interior handle, emergency key override or authorized keycards. Door Thickness From 1-3/8" to 2-1/2" (35 mm to 66 mm) Shipping Weight 8.5 lbs (3.8 kg) Housing Construction Cast zinc alloy (outside housing levers and thumbturn), stainless steel inside housing

Finishes

Satin chrome
Bright brass
Bright chrome
Dark bronze
Satin brass
Satin nickel
Ultra satin chrome

Standard Backset:
2-3/4" (70 mm) backset or optional 2-3/8" (60 mm) backset also available for cylindrical lock
2-3/4" (70 mm) backset for mortise lock

Locking Options:
ANSI lock case with 1-1/4" or 1" lock front mortise
Cylindrical latch (2-3/8 or 2-3/4 backset)

Batteries:
Alkaline 4 AA batteries for up to 90,000 openings. Low battery indicator on lock and in software.

Programming & Audit Trail

E-Plex 7900 RFID is a BLE enabled Grade 1 electronic lockset offering more compatibility. With variable models each designed to function with a designated list of credential types, E-Plex 7900 can be trusted in any access control environment. The E7900 offers wireless door sensing capabilities and allows for real-time commands such as emergency lockdown. E7900 integrates with a suite of dormakaba products to provide complete facility access control.

7900 with E-Plex Enterprise Software

Lock memory stores 30,000 audits, max 10,000 users, wireless locks using Enterprise software stream lock transactions in real time with on-line programming. Stand-alone lock programming and audit retrieval requires PC M unit.

7900 with Aurora Software

Lock memory stores 30,000 audits, max 10,000 users, wireless locks using Aurora software stream lock transactions in real time with on-line programming. Stand-alone lock programming and audit retrieval requires M unit (Handheld device - available soon).

Programming Command Card

Command card set matching card technology of lock ordered is required to be purchased separately to program all locks with that same card technology (not included with lock)
