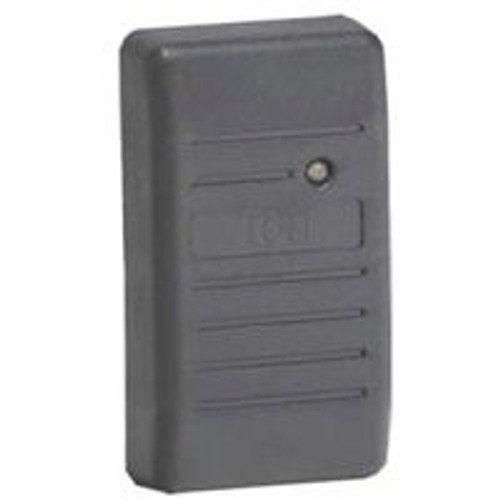

IEI Front End SS-ProxPoint Weatherproof Proximity Reader

Fits on door frame and accepts IEI ProxCard II credentials. Couple with IEI Secured Series™ MiniMax 3, HubMax II, or Max 3 access control systems. The unobtrusive design and contoured shape provide a modern style to complement any entry points. User simply waives their proximity card in front of the reader to request admittance.

• Reads HID 26-bit prox cards


• Read Range: 2-3”


• Dimensions: 3.135” (H) x 1.7” (W) x .510” (D)


• Indoor/outdoor weatherproof design


• Visual indicator


• Operating Voltage: 12VDC (supplied by MiniMax 3, or Max 3 controller)


• Operating temperature: -22° F to 150°F (30°to 75° C)


• Transmit Frequency: 125 kHz
